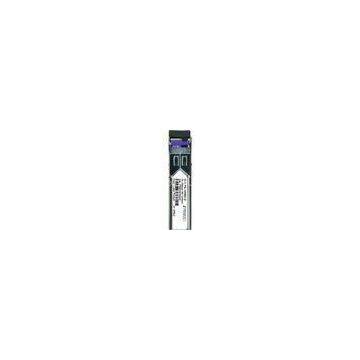

1000BASE-BX10 BIDI SFP Fiber Channel Transceiver GLC-BX-D , LC / SC Connector
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
100G Infiniband CFP Fiber Optical Transceiver OTU4 Compatible CFP-100G-SR10
-
300M MMF 40GBASE-CSR4 QSFP + Module QSFP Optical Transceiver QSFP-40G-CSR4
-
1310nm 40GBASE-LR4 SMF QSFP Optical Transceiver QSFP + Module QSFP-40G-LR4
-
MMF 40GBASE-SR4 QSFP Optical Transceiver QSFP + Module QSFP-40G-SR4
-
1.25G 1310nm SFP Optical Transceivers with Duplex LC connector GLC-LH-SM
-
VSCEL SFP + Optical Transceiver SFP-10G-SR , 10 Gigabit Small Form Factor Pluggable Module
Product Details
| Brand Name | PrimusIT,OEM | Place of Origin | China | |
| Model Number | PTB-4312L-20 |
Product Description
Certification:CE/FCC/RoHS/TUV/UL
1000BASE-BX10 BIDI SFP Fiber Channel Transceiver GLC-BX-D , LC / SC Connector
1000BASE-BX10 SFP module for single-strand SMF, 1490-nmTX/1310-nm RX wavelength
Specification:
| P/N | GLC-BX-D |
| Datarate | 1.25Gb/s |
| Wavelenth | TX 1490nm/ RX 1310nm |
| Distance | 20KM |
| Transmitter | DFB |
| Receiver | PIN |
| Media | SMF |
| DDM/DOM | YES |
| Connector | LC/SC |
| Application | Gigabit Ethernet/Fiber Channel |
| Operating Temperature | 0℃~ +70℃ |
| Voltage Supply | 3.3V |
| Certification | CE/FCC/RoHS/TUV/UL |
| Brand | PrimusIT, OEM |
Description:
1000BASE-BX10 SFP module for single-strand SMF, 1490-nmTX/1310-nm RX wavelength
The PrimusIT Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
Features:
Up to 1.25Gbps data-rate 1310nm/1550nm/1490nm laser and PIN/APD photodetector for 0~160km transmission Compliant with SFP MSA and SFF-8472 with simplex LC/SC receptacle Digital Diagnostic Monitoring:Internal Calibration or External Calibration Compatible with RoHS +3.3V single power supply Operating case temperature: Standard : 0 to +70°C / Industrial : -40 to +85°C Compatible with SONETApplications:
Switch to Switch interface
Router/Server interface
Other optical transmission systems
Gigabit Ethernet/Fast Ethenet
Fiber Channel
SDH/SONET/ATM
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Juniper/H3C/Extreme…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
