Home > Products > Wire?Harness?Assembly > Mobile Devices Wire Harness Assembly , Right / Vertical Angle Cable Assembly

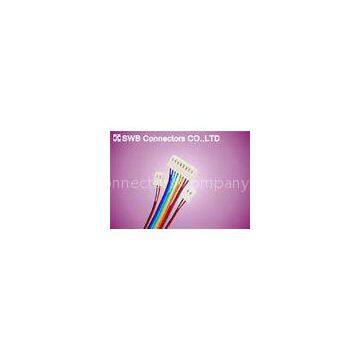

Mobile Devices Wire Harness Assembly , Right / Vertical Angle Cable Assembly
- T/T L/C D/P D/A
- 7 days
You May Like
-
Automotive Electronic Power Connectors 3 mm , Male SATA Connector 15 Pin
-
Straight Orientation Single Row SATA 3 mm Electronic Power Connectors
-
Straight Orientation Female IDC Insulation Displacement Connector Wire to Board 2.54mm
-
Micro Match Board to Board Connectors 1.27 mm Pitch , Male Crimp Connector
-
2.54 mm Wire to Board IDC Socket Connector 64 Pin For Flat Cable
-
Board to Board IDC 1.27 mm Pitch Connector for Storage Crimp Style
Product Details
Brand Name | SWB | Place of Origin | China | |
Model Number | W6 |
Product Description
Certification:ISO9001/SGS/UL/RoHS/Reach
Wire Harnesses ?for Mobile Devices
?Specifications:
Product Name |
Cable Assembly |
Product Series |
Wire Harness Assembly |
SWB Part Number |
W4 |
Gender |
N/A |
Pitch |
mm |
No. of Rows |
1 |
No. of Contacts |
02~12 |
Orientation |
Right / Vertical Angle |
Contact Material |
Brass |
Contact Plating |
Tin |
Plastic Material |
LCP UL 94V-0 |
Plastic Color |
Black |
Current Rating |
5A AC/DC |
Voltage Rating |
250V AC/DC |
OperatingTemp. Range |
-40℃~+85℃ |
Contact Resistance |
10mΩ Max |
Insulation Resistance |
1000MΩ Min |
Withstanding Voltage |
1500V AC/minute |
Wire Range |
AWG#20~26 |
?Competitive Advantages:
Perfect Packing Competitive Price Prompt Delivery Cetification: ISO9001/SGS/UL/RoHS/ReachContact Us
