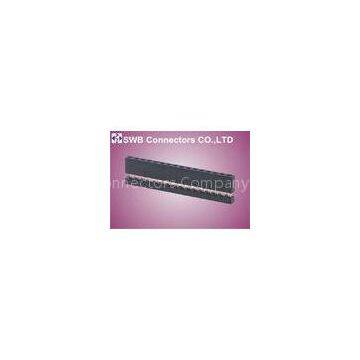

20 Pin Female DIP Plug Single Row Connector IDC 2.54mm Pitch , Tin Contact Plating
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Micro Match Crimp Style Board to Board Connectors 1.27 mm Pitch
-
Male Board to Board Connection , Crimp Style 1.27mm IDC Connector
-
Automotive Board to Board Connectors , Crimp Style Connector 2.54 mm Pitch
-
Box Header IDC Connection Wire to Board Connector 2mm 10 Pin - 50 Pin
-
2mm IDC Connector , Press Flat Cable Type Wire to Board Connectors
-
DIP Plug IDC Connector 50 Pin , Male Wire to Board Connectors 2.0mm Pitch
Product Details
| Brand Name | SWB | Place of Origin | China | |
| Model Number | 2542 Series |
Product Description
Certification:ISO9001/SGS/UL/RoHS/Reach
DIP Plug IDC Connector , WTB Connectors 2.54mm Pitch Single Row
?Specifications:
|
Product Name |
DIP Plug Connector |
|
Product Series |
IDC Connector |
|
SWB Part Number |
2542HDV-XX-PTB |
|
Gender |
Female |
|
Pitch |
2.54mm |
|
No. of Rows |
1 |
|
No. of Contacts |
6~20 |
|
Orientation |
Straight |
|
Contact Material |
Brass |
|
Contact Plating |
Tin Plated |
|
Plastic Material |
PBT UL 94V-0 |
|
Plastic Color |
Black |
|
Current Rating |
1A AC/DC |
|
Voltage Rating |
500V AC/DC |
|
OperatingTemp. Range |
-25℃~+85℃ |
|
Contact Resistance |
20mΩ Max |
|
Insulation Resistance |
1000MΩ Min |
|
Withstanding Voltage |
500V AC/minute |
|
Wire Range |
AWG#28 |
