Home > Products > PON Transceiver > Symmetrical 10Gb/s ONU SFP+ Optical Transceiver 1270T / 1577R , PON Module

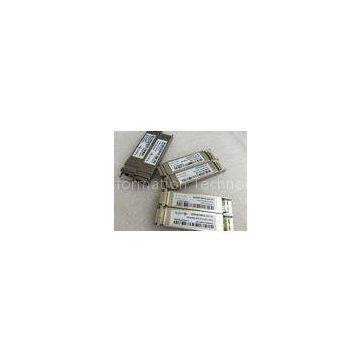

Symmetrical 10Gb/s ONU SFP+ Optical Transceiver 1270T / 1577R , PON Module
- T/T L/C D/P D/A
- 7 days
You May Like
-
PR30 PX20+ Reach PON Transceiver Complies With FDA 21 CFR 1040.10 And 1040.11
-
Full Compatible 1577R Asymmetrical ONU SFP+ PON Transceiver DFB / APD
-
Symmetrical 10GEPON OLT PON Transceiver SC / UPC RECE , XFP Optical Transceiver
-
Asymmetric 20km PON Transceiver SFP+ Passive Component DFB / APD
-
ONU BIDI SFF 2.5Gb/s PON Transceiver 1310T / 1490R For Passive Optical Networks
-
SONET / SDH SFP Optical Transceivers 2.5Gb/s 20km LC - Connector
Product Details
Brand Name | Superxon | Place of Origin | China | |
Model Number | SOEX2677-PSGA |
Product Description
Certification:TUV/ FCC/ UL/ROHS/FDA
Specifications:
P/N |
SOEX2677-PSGA |
Data?rate: |
10Gbs |
Distance |
PR30 |
Wavelength |
1270nm?T/1577nm?R |
Transmitter |
DFB |
Receiver |
APD |
DDM |
Yes |
Connector |
SC |
Operating?Temperature |
-0~70℃ |
Voltage?Supply |
3.3V |
Brand |
Superxon |
Certification |
TUV/FCC/UL/ROHS/?FDA/CDRH |
Single fiber bi-directional data links Symmetric TX 10.3125Gbps/RX10.3125Gbps application
0 to 70°C operating case temperature
Single 3.3V power supply
SFP+ package with SC/UPC Receptacle connector
Hot-pluggable capability
High power 1270nm DFB LD and high sensitivity 1577nm APD
Support 20km transmission distance with SMF
CML compatible data input/output interface
Low power dissipation
Low EMI and excellent ESD protection
Digital diagnostic monitor interface
RoHS-6 compliance
APPLICATIONS
Symmetric 10GEPON PR30 ONU with 15~29dB attenuation range
STANDARDS
Complies with SFP+ MSA (SFF-8431)
Complies with IEEE 802.3av
Complies with SFF-8472
Complies with FCC 47 CFR Part 15, Class B
Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Competitive Advantage:
1. Excellent quality with 2 years warranty
2 Competitive pricing
3.OEM/ODM?Customized label
4 Keep stock , Fast delivery
DUCT-LINE OVERVIEW:
Why choose Superxon:
Sichuan Superxon Information Technology Co.Ltd.is a leading supplier which provide the optical transceiver modules with the high performance price ratio and headquartered in Chengdu, China, founded in 2007.
?? Superxon focuses on R&D, Manufacture, Operation and Service. Superxon provide the optical transceiver modules as their major business, such as OSA, CPE and XO. Superxon provides products and innovations technology in TELECOM, DATACOM, FTTX, Enterprise, Storage, Metro and CWDM/DWDM optical networks, and supports the data rates from 100Mb/s to 40Gb/s, the transmission distance from 300m to 120Km. These products are sold all around the world, such as Huawei,ZTE, Fiberhome, ALU, UTstarcom, Mitsubishi Electric, Sumitomo, Dasan, Ubiqoss, etc. All the products have the TUV,FCC,FDA/CDRH and UL .etc international certification.
? ?Superxon will continue depending on technology edge and adhering to the major direction to achieve harmonious win-win with customers and suppliers. Superxon aims to meet customers’ needs, growing with customers, and creates a good development platform to employees.
Other Types:
PN | Media Type | λ(nm) | LD/PD | Rate(Gb/s) | Reach | Temp | Connector | DDMI |
SOEX6376-XSGB | SMF | 1577T / 1490T/ 1270R | EML/DFB/APD | 10.3125T / 1.25T / 1.25R | PR30 PX20+ |
C | SC | Y |
SOEX6277-XSGB | SMF | 1577T / 1270R 1490T / 1310R |
EML/DFB/APD | 10.3125T /10.3125R 1.25T / 1.25R |
PR30 PX20+ |
C | SC | Y |
SOEX6277-XSGC | SMF | 1577T / 1270R | EML/APD | 10.3125T /10.3125R | PR30 | C | SC | Y |
SOEX3667-PSGA | SMF | 1310T / 1577R | DFB/APD | 1.25T / 10.3125R | PRX30 | C , I | SC | Y |
SOEX2677-PSGA | SMF | 1270T / 1577R | DFB/APD | 10.3125T /10.3125R | PR30 | C , I | SC |
Y |
