PVC Window and Door Plate Extrusion Line

PVC Window and Door Plate Extrusion Line.

This productionline is applicable to the continuous extruding of PVC door plate,clapboard'elbow board and floorboard .Appropriate conical (parallel double-screwextruder of different specifications should be chosen in accordance withdifferent plate sections It is reasonably equipped withcorresponding mouldsvacuum calibrating table ,caterpillar tractor,landscape orientation cuttingmachine ,reversal stacker ,etc.

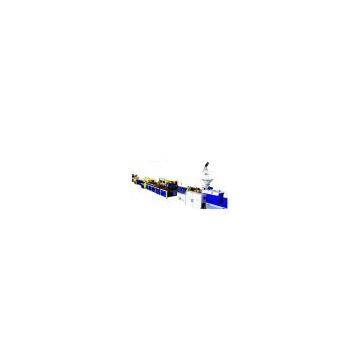

PVC window and door plate extrusion line

I, Components:

A, SZSJ-65/125 conical twin-screw extruder

B, Vacuum sizing platform

C, Tractor

D, Automatic cutting machine.

E, Reversal stacker

II, Equipmentconfigurations

A, SZSJ-65/125conical twin-screw extruder 1,Screw barrel material: 38CrMoAIA,nitriding, one direction, rotation speed of 3.8-38 rev / min.

2,Automatic powder feeding system:automatically timing, forced springfeeding storage hopper, deposit hopper,materials are stainless steel,electrical power 1.5kw.

3,Forced feeding system: using theplanet-cycloid reducer, frequency conversion, power 1.1kw.

4,Driving motor power: 37kw, frequencyconversion timing, the main motor with three-phase AC motor with forcedair-cooled.

5,The internal screw with the oil temperature device,temperature medium is oil, infrared electric rods heating, automatictemperature control,cooling medium is water oil pump power 1.1kw.

6, Vacuum exhaust system: the barrel with exhaust ventand vacuum gauge,one vacuum pump, power 1.5kw.

B, Vacuum sizing platform1,Sizing desk length: 6 meters

2,Equipped with three vacuum pumps, power 4kw, onewater pump power 2.2kw.

3,With front and back electric displacement: motor power:1.5kw, three phase adjustable

.4,With copper material vacuum nozzle-type water, gas nozzle, each 32.

5,With air-drying device.

C, Tractor1,Tractor effective grip length 1500mm.

2, Rubber block length 1800mm

3,Dragging power: 2.2kwX2, frequencyconversion timing.

D, Automaticcutting machine.

1,Drag blade motor power 0.75kw.

E, Reversal stacker1,Table length: 6 meters.

III, Auxiliaries(According to your choice)

1, SHR-300/600 one mixing unit,two-speed motor power 40/55kw,body material stainless steel.

2, Plastic crusher SWP560, 1set,motor power22kw.

V, About assembling, adjustment and after-sell service

1,Theseller send engineers to help assembling andadjusting equipments in thebuyers workshop, the buyer will be responsible fortickets cost and accommodation

2,The seller offer One-year quality guarantee for the equipments , the buyer must operate the equipment in proper way(Wearing partsand non-appropriative parts not in warranty. Such as:belts, chains, bearings,blades, etc.)

3,The seller offer the buyer directions for producing theproducts and whole set of technics
