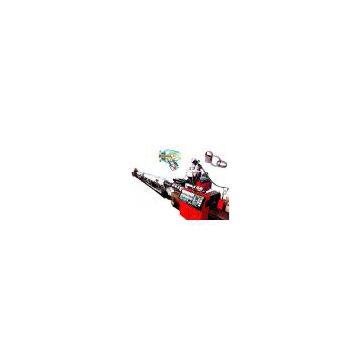

The U-PVC Foamed Inside Spiral Muffle Pipe Production Line

 The U-PVC Foamed Inside Spiral Muffle Pipe Production Line

The machine can also be used for PVC-ABS Composite Water Supply Pipe Production Line (Patent No.ZL01244314.X)

The main machine adopt two extruders cooperation, well-developed technology prescription obtains from many years experience can cause the pipe specific gravity drop in till 0.9, and the pipe have uniform foam and high intensity.

Specially design co-extruding die, merely need to replace core mandril, it may produce solid-wall pipe, solid wall inner helix pipe foamed pipe and foam inner helix pipe.

By changing the die it can produce the Nanometer anti-virus PVC feeding pipe, hollow wall inner screw thread muffle pipe and multi-layer composite pipe, like PVC/ABS and so on.

UPVC pipe production line

I,Equipment consist:

A, SZSJ-51 conical twin-screw extruder 1set

B, U-PVC inner spiral pipe mold 2sets

C, vacuum sizing tanks 1set

D, 120-type tractor 1set

E, automatic cutting machine 1set

F, reversal stacker 1set

II,Production line configurations:

A, Main machine model: SZSJ-51 conical twin-screw extruder

1, main machine drag power 22kw, frequency conversion speed-contral, measurement of feeding devices, motor power 0.55kw.

2, main machine with a vacuum device, power 1.45Kw.

3,machiness heating loop: cast aluminum entire closed infrared heating, power 14Kw.

4, cooling control: low noise fan 60wX3

5, automatic feeding machine,1 set, power 1.1Kw.

B, Mould

1,products specifications range: Φ50, 75,110 mm

2, die transmission power: 0.55kw

C, vacuum calibrating tank

1,body length 4000mm

2, vacuum pump power: 4kw

3, water pump power: 4kw

4, before and after electric shift, power 1.1kw

D, traction machine

1, the effective folder-foot length: 1200mm

2,Transmission power: 2.2kw

E, Automatic cutting machine

1, transmission motor power: 1.1kw

F, Reversal stacker rack

2,table length: 4000mm

G, Assembling, adjustment and after-sell service

1The seller send engineers to help assembling and adjusting equipments in the buyers workshop, the buyer will be responsible for tickets cost and accommodation

2The seller offer One-year quality guarantee for the equipments , the buyer must operate the equipment in proper way(Wearing parts and non-appropriative parts not in warranty.Such as: belts, chains, bearings, blades, etc.)

3The seller offer the buyer directions for producing products and whole set of technics
