Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | RG11 standard shield |
Product Description
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
RG11 Coaxial Cable CATV Coaxial Cable With CCS Inner Conductor, 75 Ohm Drop Cable, CATV Broadband Video Cable
Product description:

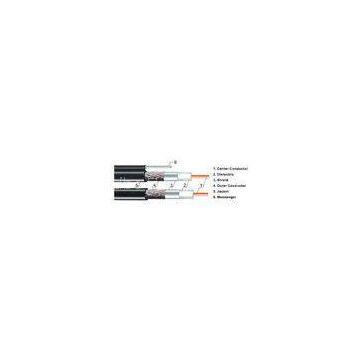

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 62% braiding coverage, PVC jacket.
Center conductor:
14 AWG copper clad steel
Nominal diameter: 0.064 inches (1.63mm)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.280 inches (7.11mm)
Shield:
1st shield: laminated aluminum tape bonded to the dielectric.
Nominal diameter over tape: 0.287inches (7.29mm)
2nd shield: 0.16mm aluminum braiding wire, 62% coverage.
PVC Jacket:
Nominal diameter over jacket: 0.40inches 10.16mm)
Nominal jacket thickness: 0.042inches (1.07mm)
Electrical properties:
Impedance: 75±3 ohms
Velocity of propagation: 85% nominal
Attenuation@ 68OF(20oC):
|
@Frequency MHZ |
dB/100ft. (MAX.) |
dB/100 meters(MAX.) |
|
5MHZ |
0.38 |
1.25 |
|
55MHZ |
0.96 |
3.15 |
|
83MHZ |
1.18 |
3.87 |
|
187MHZ |
1.75 |
5.74 |
|
211MHZ |
1.90 |
6.23 |
|
250MHZ |
2.05 |
6.72 |
|
300MHZ |
2.25 |
7.38 |
|
350MHZ |
2.42 |
7.94 |
|
400MHZ |
2.60 |
8.53 |
|
450MHZ |
2.75 |
9.02 |
|
500MHZ |
2.90 |
9.51 |
|
550MHZ |
3.04 |
9.97 |
|
600MHZ |
3.18 |
10.43 |
|
750MHZ |
3.65 |
11.97 |
|
865MHZ |
3.98 |
13.05 |
|
1000MHZ |
4.35 |
14.27 |
Applications:
RG11 cable is for CATV (community antenna television), and MATV (master antenna television) distribution.
