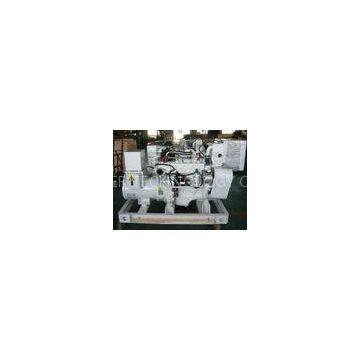

45kw, 57kva Cummins Marine Type Diesel Generator Set V50m

1.Frequency 50HZ, 1500RPM, Rating voltage 380V/220V
2.Protection Standard: IP21-IP23
3.Model of Connection: 3 phase 4 lines
4.brushless 3 phases generator


45kw, 57kva Cummins Marine Type Diesel Generator Set V50m
?

Descriptions:

Cummins series marine diesel generating sets are composed of 4BT, 6BT, 6CT, NT, KT marine engines produced by Chinese Cummins Joint Venture Company, and Stamford or Marathon series brushless 3 phases generator.
The gensets possess closed cooling water system and protection features for high water oil temperature, low oil pressure and over speed. The rotor of generator is designed of non-salient pole type and provided dampling windings and brushless THYRIPART excitation system.


Features:

Engine collection: fresh-sea water cooling system, heat exchange, fresh sea water pump, expansion tank;
Both engine and alternator are mounted on same steel structural base frame with isolators installed;
24V DC electric system with battery, control panel with voltage, ampere, frequency, oil pressure, water temperature, hour meter, emergency stop button; air cleaner; captive 4-point mounting system with vibration isolator mounts. Structural steel skid with convenient 4-point lifting arrangement. Engine protecting system: high speed, high water temperature, low oil pressure.


50Hz Specifications:
?
