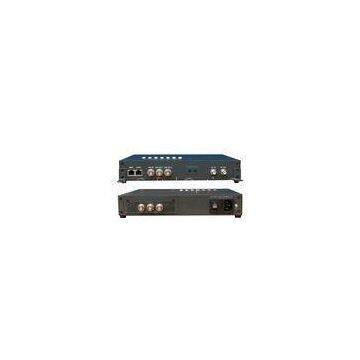

English MPEG2 CVBS HD Encoder Modulator Web NMS With LCD window , AC 100V - 240V

Brand Name	SOFTEL.OEM		Place of Origin	China
Model Number	SFT3542 1*CVBS to ATSC

Delivery Time:About 7 days
Certification:CE|ISO|RoSH

English MPEG2 CVBS HD Encoder Modulator Web NMS With LCD window , AC 100V - 240V

SFT3542 Wall Mounting Digital Headend Equipment,1*CVBS/ASI/RF in to ATSC Encoder Modulator

Quick?Detail:

Modular?design MPEG2?low?bit?rate?encoding 720*576(PAL),?720*480(NTSC) 1*?CVBS?in,?1*ASI?in,?1*RF?in RF?ATSC?out LCN?support?(Logical?Channel?Number) Excellent?modulation?quality?MER≥42dB RF?Frequency?range?30Mhz~960Mhz LCD?window,?Remote?control?and?firmware Updates?via?web/Ethernet Lowest?cost?per?channel?---?breakthrough?price

Description:

SFT3542?1*CVBS?to?ATSC?encoder?&?modulator?is?a?device?integrated?with?MPEG2?encoding?and?

ATSC?modulation?to?convert?HD/SD?AV?signals?to?ATSC?RF?out?in?the?frequency?range?of?30~960MHz.?It?has?

equipped?with 1?channel?CVBS?input?and?1?ASI?input.

The?signals?source?could?be?from?satellite?receivers,?closed-circuit?television?cameras,?Blue-ray?players,?

and?antenna?etc.?its?output?signal?is?to?be?received?by?an ATSC?standard?TV,?ATSC?STB?and?etc.

The?device?can?be?used?in?public?places?such?as?metro,?market?hall,?theatre,?hotels,?resorts,?etc?for?

advertising.?It?also?can?be?used?for?monitoring,?training?and?educating?in?company,?schools,?campuses,?

hospital…?Besides,?it’s?a?good?choice?for?bars?to?offer?HD?sports?channels,?for?VIP?entertainment?

channels,?and?more.

Specifications:

Input

1x?CVBS?input?(HDMI/SDI/RF/…/?optional)

1×ASI?input,?BNC?interface

Encoding?Section

Video

Encoding	MPEG-2?MP@ML(4:2:0)
Input	CVBS*1,?ASI*1
Resolution	720*576(PAL),?720*480(NTSC)

Audio

Encoding	MPEG1?Layer?II
Sample?rate	48KHz
Bit?rate	64kbps,?96kbps,128kbps,?192kbps,?256kbps,?320kbps

ATSC?Modulator?Section

Standard	ATSC?A/53
Constellation	8?VSB
RF?Output?Level	26~-10dbm?(81~97dbμV),?0.1db?step
MER	≥42dB
RF?frequency	30~960MHz,?1KHz?step

Stream?Output

1*RF

2×ASI?outputs,?BNC?interface

MPTS?over?UDP,10/100Base-T?Ethernet?interface (UDP?unicast?/?multicast)

Interface

Local?interface	LCD?+?control?buttons
Remote?management	Web?NMS
Language	English

General

Power?supply	AC?100V~240V
Dimensions	267*245*44.5mm
Weight	2.5?kgs
Operation?temperature	0~45℃
