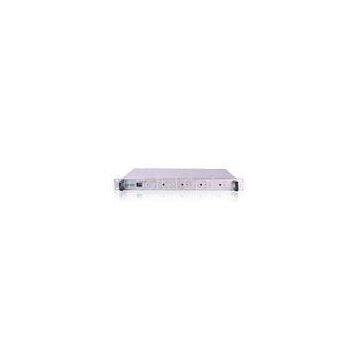

1550nm 1310nm CATV Optical Node Single Mode 55dB With FC / APC

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SOFTEL.OEM		Place of Origin	China
Model Number	SR804R

Product Description

Delivery Time:About 7 days
Certification:CE,ISO9000,Rohs

1550nm 1310nm CATV Optical Node Single mode ≥55dB With FC / APC

Softel FTTx SR804R 5～65/200Mhz Four-way Return Path Optical Receiver, CATV Indoor Optical Node

Quick Detail:

Brand Name: Softel Model Number: SR804R Item Name: SR804R Four-way Return Path Optical Receiver Frequency Range: 5~200Mhz Optical Input Range: -15～-3 Wavelength: 1310, 1550 dual window Connector Type: FC/APC, SC/APC or Customized Fiber Type: Single mode Optical Return Loss: ≥55dB Power Voltage: AC(150~265)V Optic Node Dimension: 483(L)x282(W)x44(H) LED display in front panel: At customers requirement

Description:

SR804R is an special equipment developed for CATV HFC two-way BMAN for uplink; It is mainly used to receive reverse transmission of TV image signal, telephone voice signal and data (or compressed data) signal. Automatic power control circuit and high performance multistage band pass filter are used to improve SNR of back channel and ensure the stable RF output level, so the reliability of CATV HFC network uplink is improved. 4 independent optical receiving unit that independently receive,amplify and monitor and with independently adjustable output level are used in 19?1Ustanderdrack; This reasonably structured receiver with high integration density is easy to install and debug.

PHILIPS or E-O detector who’s receiving optical power threshold is low and line SNR is high with low noise and high sensitivity for optical is selected. Microwave low-noise tube push-pull circuit with low power consumption, small noise figure, high output level, good nonlinear index is used for RF amplifier circuit. The multistage high-performance high-pass filter is added to suppress noise below 25MHZ and raise uplink NPR indexes efficaciously. Advanced automatic power control circuit is added to make it easier to debug uplink. When the input optical power is varied from 0dBm to 8dBm, the RF output level is constant reversely. As a maximum,4 independent optical receiver module in the 19”1U standard rack; Each optical receiver module receives and amplifies independently. Backup data communications interface, it is convenient to connect with network management responder, connecting with network management system.

Specifications:

Items	Unit	Technical Parameters
Optical Input Range	dBm	-15～-3
Nominal Wavelength	nm	1310, 1550 dual window
Optical Fiber Connect or Type		FC/APC,SC/APC
Optical? Return? Loss	dB	≥45
Frequency Range	MHz	5～65/200
Output Level	dBmV	≥90(Receive-8dBm)
Link Flatness	dB	±1.5
Return Loss	dB	≥16
Output Impedance	Ω	75
Output Voltage Regulation Range
