NMS SDI HDMI HD Encoder Modulator DVB-S2 / S RF , 950MHz - 2150MHz

NMS SDI HDMI HD Encoder Modulator DVB-S2 / S RF , 950MHz - 2150MHz

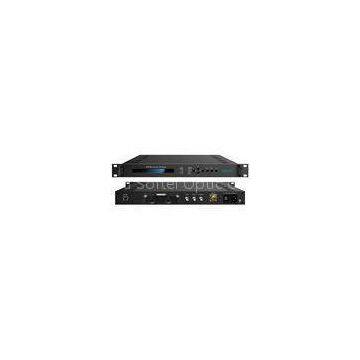

SFT3543 1U Rack MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional,CVBS/SDI/HDMI/YPbPr input to DVB-S2/S Output Encode

Quick Detail:

* MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional

* CVBS/SDI/HDMI/YPbPr…signals in & 1*ASI in

* Support DVB-S/S2 RF (IF Optional) output and ASI output

* LCN support (Logical Channel Number)

* Output Frequency: RF: 950-2150MHz;? IF: 50-200MHz

* Symbol Rate: 0.05-20Msps

* Low latency achieved (CVBS Encoding modules excluded)

* Support BISS fucntion

* Support 10MHz reference clock

* Support Web NMS and front panel LCD & Keyboard control

* Upgrade device through web NMS

Description:

SFT3543 DVB-S/S2 Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (CVBS/SDI/HDMI/YPbPr…) as needed. It is also equipped with 1 channel ASI input. It outputs ASI and DVB-S/S2 RF (IF Optional) in the same time.

The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, SFT3543 is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.

Specifications:

Single SDI Encoding Input

Video

Audio

Single HDMI Encoding Input

Video

Audio

HDMI/YPbPr/CVBS 3-in-1 Encoding Input
