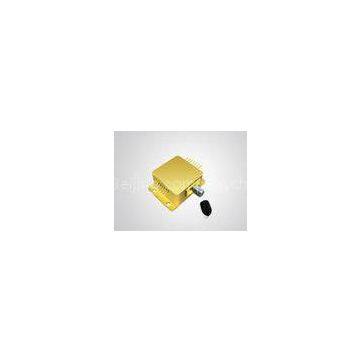

0.22N.A. 8W 808nm Diode Laser Module , 8W diode laser module
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
OEM 4W 808nm Diode Laser Module with Standard 200m core fiber
-
Fiber Detachable 808nm Diode Laser Module 2W 0.22N.A.diode module
-
808nm Dual - Wavelength Diode Laser Module 8W 200m / 400m
-
High Brightness 808nm Diode Laser Module , 0.22N.A. 30W laser diode module
-
HHL Packaged 8W High Power Diode Laser Module 808nm 400m 0.22N.A.
-
HHL Packaged Window 10W 808nm Diode Laser Module for Graphic arts
Product Details
| Brand Name | BWT | Place of Origin | China | |
| Model Number | K808D14CA- 8.00W |
Product Description
Certification:ISO9001
Competitive price 0.22N.A. 808nm 8W Diode Laser Module K808D/K14C- 8.00W
Features:
?????????????????Fiber detector
??????????????? Constant power control circuit?
Applications:
???Material processing
? Medical use
|
Specifications(25℃) |
Symbol |
Unit |
K808D14CA- 2.00W |
K808D14CA- 4.00W |
K808D14CA- 8.00W |
|
| Optical Data |
CW-Output Power |
Po |
W |
2 |
4 |
8 |
|
Center Wavelength |
λc |
nm |
808 |
|||
|
Tolerance of?λ |
- |
nm |
±3, ±10 |
|||
|
Spectral Width (FWHM) |
△λ |
nm |
<3 |
|||
|
Temperature Drift of?λ |
- |
nm/℃ |
~0.3 |
|||
|
Connector Data |
Fiber Core Diameter |
Wc |
μm |
200 |
||
|
Fiber Numerical Aperture |
N.A. |
- |
0.22 |
|||
|
Fiber Connector |
- |
- |
SMA-905 |
|||
|
Electrical Data |
Operating Current |
Iop |
A |
2.5 |
5.0 |
10.0 |
|
Threshold Current |
Ith |
A |
0.4 |
0.8 |
1.5 |
|
|
Conversion Efficiency |
η |
% |
35~45 |
|||
|
Slope Efficiency |
ηD |
W/A |
0.8~1.0 |
|||
|
Operating Voltage |
Vop |
V |
1.8 |
2.1 |
2.2 |
|
|
Reverse Voltage |
Vre |
V |
2 |
|||
| PD Data |
Current |
Imo |
mA |
0.10~2.00 |
||
|
TEC Data |
Max. Current |
It |
A |
4.0 |
4.0 |
6.0 |
|
Max. Voltage |
Vt |
V |
9.8 |
|||
|
Thermistor Data(1) |
Thermistor |
Rt |
