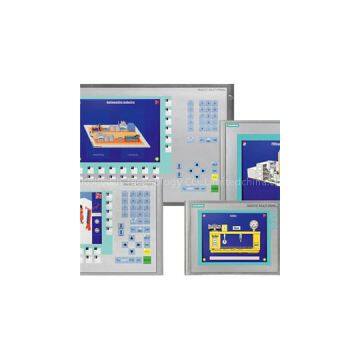

6AV6643-0CB01-1AX1

Place of Origin	China

?Artikelnummer6AV6643-0CB01-1AX1??SIMATIC MP 277 8" TOUCH MULTI PANEL W. RETENTIVE MEMORY 7.5" TFT DISPLAY 6 MB CONFIGURING MEMORY, CONFIGURABLE WITH WINCC FLEXIBLE 2005 STANDARD SP1 ******************************* THIS PRODUCT IS NO LONGER AVAILABLE FROM OCT. 1ST, 2014. INFORMATION ABOUT SUCCESSOR SEE SIMATIC UPDATE ID: 62977695 FOR FURTHER QUESTIONS PLEASE APPROACH YOUR SIEMENS CONTACT PERSON.?General informationCustomer-specific configurationYesDisplayDesign of displayTFTScreen diagonal7.5?inSize7.5"Display typeTFT, 65536 colorsNumber of grayscales0Color typeColorsResolution (pixels)● Horizontal image resolution640● Vertical image resolution480● Resolution (WxH in pixel)640 x 480Backlighting● MTBF backlighting (at 25 °C)50?000?hControl elementsControl elementsTouch screenOperating optionsTouchConnection for mouse/keyboard/barcode readerUSB / USB / USBKeyboard● Keys with LEDNo● Numeric/alphabetical inputYes / Yes— hexadecimal keyboardYesTouch operation● Design as touch screenYesSupply voltageType of supply voltageDCProcessorProcessorARMMemoryUsable memory for user data6?MbyteMain memory?● Capacity of main memory, maximum128?MbyteTime of dayClock● TypeHardware clock, battery backup, synchronizable● Hardware clock (real-time clock)Yes● Battery-backedYes● SynchronizableYesInterfacesInterfaces1 x RS422, 1 x RS485, 1 x Ethernet (RJ45)Number of RS 485 interfaces1USB port2 x USBMulti Media Card slot1x Multimedia Card slot, up to 128 MBIndustrial Ethernet● Industrial Ethernet interface1 x Ethernet (RJ45)ProtocolsSupports protocol for PROFIsafeNoPROFIBUSYesProtocols (Ethernet)● TCP/IPYesFurther protocols● other bus systemsYesDegree and class of protectionFrontIP65, NEMA 4x (when installed)IP (at the front)IP65IP (rear)IP20Standards, approvals, certificatesCertificationsCE, FM Class I Div. 2, UL, cULus, EX Zone 22, NEMA 4x (Enclosure Type 4X, Type 12)cULusYesSuitable for safety functionsNoUse in hazardous areas● EX zone 22Yes● FM Class I Division 2YesAmbient conditionsMounting positionverticalmaximum permissible angle of inclination without external ventilation+/- 35 °Operating temperature● Operation0 °C to +50 °CStorage/transport temperature● Transport, storage-20 °C to +60 °CRelative humidity● Operation, max.90?%Operating systemsOperating systemWindows CEConfigurationMessage indicatorYesWith alarm logging system (incl. buffer and acknowledgment)YesProcess value display (output)YesProcess value default (input) possibleYesRecipe administrationYesConfiguration software● STEP 7 Basic (TIA Portal)No● STEP 7 Professional (TIA Portal)No● WinCC flexible CompactNo● WinCC flexible StandardYes● WinCC flexible AdvancedYes● WinCC Basic (TIA Portal)No● WinCC Comfort (TIA Portal)Yes● WinCC Advanced (TIA Portal)Yes● WinCC Professional (TIA Portal)Yes● Configuration toolWinCC flexible Standard Version 2005 SP1 or higher (to be ordered separately)● 2nd configuration kitWinCC flexible Standard— VersionVersion 2005 SP 1— Configuration toolWinCC flexible— TypeStandardLanguagesOnline languages● Number of online/runtime languages16Languages● Languages per project32Functionality under WinCC (TIA Portal)LibrariesYesTask plannerYesHelp systemYes● Number of characters per info text70Message system● Number of alarm classes32● Number of messages4?000● Bit messagesYes● Analog messagesYes● Number of bit messages4?000● Number of analog messages200● System messages HMIYes● System messages PLCYes● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)Yes● Message length (in characters)80● Lines1● Number of process values per message8● Acknowledgment groupsYes● Message indicatorYes● First/last valueYesRecipe administration● Number of recipes300● Data records per recipe500● Entries per data record1?000● Recipe memory64 KB integrated Flash, expandableVariables● Number of variables per device2?048● Number of variables per screen200● Number of variables1?000● Limit valuesYes● MultiplexingYes● StructsYes● Type Date & Time2?048Images● Number of configurable images500● Permanent window/defaultYes● Start screen configurableYes● Image selection by PLCYes● Image number in the PLCYesImage objects● Text objects10,000 text elements● Fields per image200● Date/time fields200● ReturnYes● Graphics objectBit maps, icons, vector graphics— Icons1?000Complex image objects● Status/controlWith SIMATIC S7● dynamic objectsDiagrams, bar graphs, sliders, analog display, invisible buttons— Number of objects per project1?000— Number per image10● MethodsTrend / profile● Limit value linesYes● Number of bars per chart10● Limit value linesYes● alphanumeric fields300● alphanumeric fields per image200● numerical fields2?048● numerical fields per image200● Password errors2?048● Number of slides per image10● Number of analog indicators per image10● Number of visible switches per project200● visible switches per image200● hidden switches per image200● Number of status switches per project200● Button status switches per image200● Number of selector switches per project200● Selector switches per image200● Number of decade switches per project200● Decade switches per image200● Number of signal lamps per project200● Signal lamps per image200Attributes for dynamic objects● Color changeYes● X/Y movementYes● HideYesLists● Number of text lists per project500● Number of text lists per image200● Number of entries per text list256● Number of graphics lists per project400● Number of graphic lists per image200● Number of entries per graphics list256Archiving● Number of archives per device20● Number of measuring points per project20● Number of entries per archive10?000● Message archiveYes● Process value archiveYes● Archiving methods?— Sequential archiveYes— Short-term archiveYes● Memory locationSD and MultiMediaCard— EthernetYes● Data storage format?— CSVYes● Online evaluation?— via trendsYesFilters● cyclicYes● ToleranceYes● ChangeYesSecurity● Number of user groups50● Number of user rights32● Password export/importYesLogging through printer● Recording/PrintingAlarms, report (shift report), color print, hardcopyTransfer (upload/download)● Transfer of configurationMPI/PROFIBUS DP, USB, Ethernet, automatic transfer recognitionProcess coupling● Connection to controllerS5, S7-200, S7-300/400, TI 505, SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus) see chapter "System interfaces"● S7-1200Yes● S7-1500Yes● S7-200Yes— PPI (point-to-point)Yes— PPI networkYes— MPIYes— PROFIBUS DPYes— EthernetYes● S7-300/400Yes— MPIYes— PROFIBUS DPYes— PROFINETYes● S5Yes— PROFIBUS DPYes● TI 505Yes● Allen Bradley (DF1)Yes● Allen Bradley (DF485)Yes● Mitsubishi (FX)Yes● Mitsubishi (MP4)Yes● Telemecanique (Uni-Telway)Yes● OMRON (LINK/Multilink)Yes● Modicon (Modbus)Yes● GE-Fanuc (SNP)YesFunctions● TAB sequenceYes● Calculating functionsYes● AnimateYesService tools/configuration aids● Clean screenYes● Touch calibrationYes● Backup/restoreYes● SimulationYes● Device switchoverYes● Delta transferYesExpandability/openness● Open Platform ProgramYesI/O / OptionsI/O devicesPrinter, barcode reader● MultiMediaCardYes● SD cardYes● USB memoryYesAdditional software components loadableYesDimensionsWidth of the housing front250?mmHeight of housing front190?mmMounting cutout/device depth (W x H x T)226 mm x 166 mm / 60 mm device depthWeightsWeight (without packaging)1.61?kgotherfree hotlineYesWarranty period1?ylast modified:25.09.2015? ? ? We Resell Full New Siemens HMI, Price is 10%-30% cheaper than other countries.SeriesModelDescriptionSIMATIC Basic Panels (1st Generation)6AV6647-0AA11-3AX0KTP400 BASIC MONO PN,, KEY AND TOUCH, 4"6AV6647-0AK11-3AX0KTP400 BASIC COLOR PN, KEY AND TOUCH, 4"6AV6647-0AB11-3AX0KTP600 BASIC MONO PN, KEY AND TOUCH, 6"6AV6647-0AC11-3AX0KTP600 BASIC MONO PN, KEY AND TOUCH, 6"6AV6647-0AD11-3AX0KTP600 BASIC MONO PN, KEY AND TOUCH, 6"6AV6647-0AE11-3AX0KTP1000 BASIC COLOR DP, KEY AND TOUCH, 10"6AV6647-0AF11-3AX0KTP1000 BASIC COLOR DP, KEY AND TOUCH, 10"6AV6647-0AH11-3AX0KP300 BASIC MONO PN, KEY OPERATION, 3"6AV6647-0AJ11-3AX0KP400 BASIC COLOR PN, KEY OPERATION, 4"6AV6647-0AG11-3AX0TP1500 BASIC COLOR PN, TOUCH OPERATION, 15"SIMATIC HMI Basic Panels(2nd Generation)6AV2123-2DB03-0AX0KTP400 BASIC, KEY AND TOUCH OPERATION, 4"6AV2123-2GA03-0AX0KTP700 BASIC DP, KEY AND TOUCH OPERATION, 7"6AV2123-2GB03-0AX0KTP700 BASIC, KEY AND TOUCH OPERATION, 7"6AV2123-2JB03-0AX0KTP900 BASIC, KEY AND TOUCH OPERATION, 9"6AV2123-2MA03-0AX0KTP1200 BASIC DP, KEY AND TOUCH OPERATION, 12"6AV2123-2MB03-0AX0KTP1200 BASIC, KEY AND TOUCH OPERATION, 12"Siemens Comfort Panel6AV2124-2DC01-0AX0KTP400 COMFORT,TOUCH AND KEY OPERATION,4"6AV2124-1DC01-0AX0KP400 COMFORT,KEY OPERATION,4"6AV2124-0GC01-0AX0TP700 COMFORT,TOUCH OPERATION,7"6AV2124-1GC01-0AX0KP700 COMFORT,KEY OPERATION,7"6AV2124-0JC01-0AX0TP900 COMFORT,TOUCH OPERATION,9"6AV2124-1JC01-0AX0KP900 COMFORT,KEY OPERATION,9"6AV2124-0MC01-0AX0TP1200 COMFORT,TOUCH OPERATION,12"6AV2124-1MC01-0AX0KP1200 COMFORT,KEY OPERATION,12"6AV2124-0QC02-0AX0TP1500 COMFORT,TOUCH OPERATION,15"6AV2124-1QC02-0AX0KP1500 COMFORT,KEY OPERATION,15"6AV2124-0UC02-0AX0TP1900 COMFORT,TOUCH OPERATION,19'6AV2124-0XC02-0AX0TP2200 COMFORT,TOUCH OPERATION,22"ShippingDHL, UPS, Fedex, TNT, EMS, PostPaymentT/T, Western Union, Moneygram, PaypalMinimum Order Quantity1 pcsTechnical SupportfreeProgramming Softwarefree
