6AV2124-0JC01-0AX0

Place of Origin	China

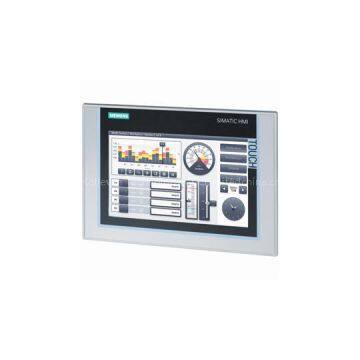

A2s?Artikelnummer 6AV2124-0JC01-0AX0??SIMATIC HMI TP900 COMFORT, COMFORT PANEL, TOUCH OPERATION, 9" WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 12 MB USER MEMORY, WINDOWS CE 6.0, CONFIGURABLE FROM WINCC COMFORT V11?Product type designationDisplayDesign of displayTFTScreen diagonal9?inDisplay width195?mmDisplay height117?mmNumber of colors16?777?216Resolution (pixels)● Horizontal image resolution800● Vertical image resolution480Backlighting● MTBF backlighting (at 25 °C)80?000?h● Dimmable backlightYes; 0-100 %Control elementsKeyboard● Number of function keys0● Keys with LEDNo● System keysNo● Numeric/alphabetical input?— Numeric keyboardYes; Onscreen keyboard— Alphanumeric keyboardYes; Onscreen keyboardTouch operation● Design as touch screenYesExpansions for operator control of the process● DP direct LEDs (LEDs as S7 output I/O)?— F1...Fx0● Direct keys (keys as S7 input I/O)?— F1...Fx0● Direct keys (touch buttons as S7 input I/O)40Installation type/mountingMounting in portrait format possibleYesMounting in landscape format possibleYesSupply voltageType of supply voltageDCRated value (DC)24?Vpermissible range, lower limit (DC)19.2?Vpermissible range, upper limit (DC)28.8?VInput currentCurrent consumption (rated value)0.75?AInrush currentA2s0.5A2·sPowerPower consumption, typ.18?WMemoryFlashYesRAMYesUsable memory for user data12?MbyteType of outputInfo LEDNoPower LEDNoError LEDNoAcoustics?● BuzzerNo● SpeakerYesTime of dayClock● Hardware clock (real-time clock)Yes● Software clockNo● Battery-backedYes; Back-up duration typically 6 weeks● SynchronizableYesInterfacesNumber of RS 485 interfaces1; RS 422/485 combinedNumber of USB interfaces2; USB 2.0Number of USB Mini B interfaces1; 5-poleNumber of SD card slots2Number of parallel interfaces0Number of 20 mA interfaces (TTY)0Number of RS 232 interfaces0Number of RS 422 interfaces1Number of other interfaces0With software interfacesNoIndustrial Ethernet● Number of industrial Ethernet interfaces2● Industrial Ethernet status LED2● Number of ports of the integrated switch2ProtocolsPROFINETYesPROFINET IOYesIRT supportedYes; As of WinCC V12MRP supportedYes; As of WinCC V12PROFIBUSYesMPIYesProtocols (Ethernet)● TCP/IPYes● DHCPYes● SNMPYes● DCPYes● LLDPYesWEB characteristics● HTTPYes● HTTPSNo● HTMLYes● XMLNo● CSSYes● Active XNo● JavaScriptYes● Java VMNoFurther protocols● CANNo● MODBUSYes● Supports protocol for EtherNet/IPYesEMCEmission of radio interference acc. to EN 55 011● Limit class A, for use in industrial areasYes● Limit class B, for use in residential areasNoDegree and class of protectionIP (at the front)IP65Enclosure Type 4 at the frontYesEnclosure type 4x at the frontYesIP (rear)IP20Standards, approvals, certificatesCE markYesKC approvalYescULusYesRCM (formerly C-TICK)YesMarine approval● Germanischer Lloyd (GL)Yes● American Bureau of Shipping (ABS)Yes● Bureau Veritas (BV)Yes● Det Norske Veritas (DNV)Yes● Lloyds Register of Shipping (LRS)Yes● Nippon Kaiji Kyokai (Class NK)Yes● Polski Rejestr Statkow (PRS)NoUse in hazardous areas● ATEX Zone 2Yes● ATEX Zone 22Yes● IECEx Zone 2Yes● IECEx Zone 22Yes● cULus Class I Zone 1No● cULus Class I Zone 2, Division 2Yes● FM Class I Division 2YesAmbient conditionsMounting positionverticalmaximum permissible angle of inclination without external ventilation35°Operating temperature● Operation (vertical installation)?— in vertical mounting position, minimum0?°C— in vertical mounting position, maximum50?°C; (55 °C, see entry ID:64847814)● Operation (max. tilt angle)?— at maximum tilt angle, minimum0?°C— at maximum tilt angle, maximum40?°C● Operation (vertical installation, portrait format)?— in vertical mounting position, minimum0?°C— in vertical mounting position, maximum40?°C● Operation (max. tilt angle, portrait format)?— at maximum tilt angle, minimum0?°C— at maximum tilt angle, maximum35?°CStorage/transport temperature● Min.-20?°C● max.60?°CRelative humidity● Operation, max.90?%Operating systemsproprietaryNoExecutable with configuration operating system● otherNoConfigurationMessage indicatorYesWith alarm logging system (incl. buffer and acknowledgment)YesProcess value display (output)YesProcess value default (input) possibleYesRecipe administrationYesConfiguration software● STEP 7 Basic (TIA Portal)No● STEP 7 Professional (TIA Portal)No● WinCC flexible CompactNo● WinCC flexible StandardNo● WinCC flexible AdvancedNo● WinCC Basic (TIA Portal)No● WinCC Comfort (TIA Portal)Yes; from V11● WinCC Advanced (TIA Portal)Yes; from V11● WinCC Professional (TIA Portal)Yes; from V11LanguagesOnline languages● Number of online/runtime languages32Languages● Languages per project32● Languages?— DYes— GBYes— FYes— IYes— EYes— Chinese traditionalYes— Chinese simplifiedYes— DKYes— FINYes— GRYes— JYes— KP / ROKYes— NLYes— NYes— PLYes— PYes— RUSYes— SYes— CZYes— SKYes— TRYes— HYesFunctionality under WinCC (TIA Portal)LibrariesYesApplications/options?● Internet ExplorerYes● Pocket WordYes● Pocket ExcelYes● PDF ViewerYes● Media PlayerYes● SIMATIC WinCC Sm@rtServerYes● SIMATIC WinCC AuditYesNumber of Visual Basic ScriptsYesTask planner?● time-controlledYes● task-controlledYesHelp system?● Number of characters per info text70Message system● Number of alarm classes32● Number of bit messages4?000● Number of analog messages200● S7 alarm number procedureYes● System messages HMIYes● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)Yes● Number of characters per message80● Number of process values per message8● Acknowledgment groupsYes● Message indicatorYes● Message buffer?— Number of entries1?024— Circulating bufferYes— retentiveYes— maintenance-freeYesRecipe administration● Number of recipes300● Data records per recipe500● Entries per data record1?000● Size of internal recipe memory2?Mbyte● Recipe memory expandableYesVariables● Number of variables per device2?048● Number of variables per screen400● Limit valuesYes● MultiplexingYes● StructsYes● ArraysYesImages● Number of configurable images500● Permanent window/defaultYes● Global imageYes● Start screen configurableYes● Image selection by PLCYes● Image number in the PLCYesImage objects● Number of objects per image400● Text fieldsYes● I/O fieldsYes● Graphic I/O fields (graphics list)Yes● Symbolic I/O fields (text list)Yes● Date/time fieldsYes● SwitchesYes● ButtonsYes● Graphic viewYes● IconsYes● Geometric objectsYesComplex image objects● Number of complex objects per screen20● Alarm viewYes● Trend viewYes● User viewYes● Status/controlYes● Sm@rtClient viewYes● Recipe viewYes● f(x) trend viewYes● System diagnostics viewYes● Media PlayerYes● Bar graphsYes● SlidersYes● Pointer instrumentsYes● Analog/digital clockYesLists● Number of text lists per project500● Number of entries per text list500● Number of graphics lists per project500● Number of entries per graphics list500Archiving● Number of archives per device50● Number of entries per archive20?000● Message archiveYes● Process value archiveYes● Archiving methods?— Sequential archiveYes— Short-term archiveYes● Memory location?— Memory cardYes— USB memoryYes— EthernetYes● Data storage format?— CSVYes— TXTYes— RDBYesSecurity● Number of user groups50● Number of user rights32● Number of users50● Password export/importYes● SIMATIC LogonYesLogging through printer● AlarmsYes● Report (shift log)Yes● HardcopyYes● Electronic print to fileYes; pdf, htmlCharacter sets● Keyboard?— US American (English)Yes● Character sets?— TahomaYes— ArialYes— Courier NewYes— WinCC flexible StandardYes— Ideographic languagesYes● Font size freely scalableYes● Additional character sets can be loadedYesTransfer (upload/download)● MPI/PROFIBUS DPYes● USBYes● EthernetYes● using external storage mediumNoProcess coupling● S7-1200Yes● S7-1500Yes● S7-200Yes● S7-300/400Yes● LOGO!Yes● Win ACYes● SINUMERIKYes; with SINUMERIK option package● SIMOTIONNo; With WinCC, subsequent version● Allen Bradley (EtherNet/IP)Yes● Allen Bradley (DF1)Yes● Mitsubishi (MC TCP/IP)Yes● Mitsubishi (FX)Yes● OMRON (FINS TCP)No● OMRON (LINK/Multilink)Yes● Modicon (Modbus TCP/IP)Yes● Modicon (Modbus)Yes● OPC UA ClientYes● OPC UA ServerYesService tools/configuration aids● Clean screenYes● Touch calibrationYes● Backup/restoreYes● Backup/Restore automaticallyYes● SimulationYes● Device switchoverYes● Delta transferYesI/O / OptionsI/O devices?● PrinterYes● MultiMediaCardYes● SD cardYes● USB memoryYes● Network cameraYesMechanics/materialType of housing (front)?● plasticNo● aluminumYes● Stainless steelNoDimensionsWidth of the housing front274?mmHeight of housing front190?mmMounting cutout/device depth (W x H x T)?● Mounting cutout, width251?mm● Mounting cutout, height166?mmDevice depth63?mmWeightsWithout packaging1.9?kgWith packaging2.6?kglast modified:13.10.2015? ? ? We Resell Full New Siemens HMI, Price is 10%-30% cheaper than other countries.SeriesModelDescriptionSIMATIC Basic Panels (1st Generation)6AV6647-0AA11-3AX0KTP400 BASIC MONO PN,, KEY AND TOUCH, 4"6AV6647-0AK11-3AX0KTP400 BASIC COLOR PN, KEY AND TOUCH, 4"6AV6647-0AB11-3AX0KTP600 BASIC MONO PN, KEY AND TOUCH, 6"6AV6647-0AC11-3AX0KTP600 BASIC MONO PN, KEY AND TOUCH, 6"6AV6647-0AD11-3AX0KTP600 BASIC MONO PN, KEY AND TOUCH, 6"6AV6647-0AE11-3AX0KTP1000 BASIC COLOR DP, KEY AND TOUCH, 10"6AV6647-0AF11-3AX0KTP1000 BASIC COLOR DP, KEY AND TOUCH, 10"6AV6647-0AH11-3AX0KP300 BASIC MONO PN, KEY OPERATION, 3"6AV6647-0AJ11-3AX0KP400 BASIC COLOR PN, KEY OPERATION, 4"6AV6647-0AG11-3AX0TP1500 BASIC COLOR PN, TOUCH OPERATION, 15"SIMATIC HMI Basic Panels(2nd Generation)6AV2123-2DB03-0AX0KTP400 BASIC, KEY AND TOUCH OPERATION, 4"6AV2123-2GA03-0AX0KTP700 BASIC DP, KEY AND TOUCH OPERATION, 7"6AV2123-2GB03-0AX0KTP700 BASIC, KEY AND TOUCH OPERATION, 7"6AV2123-2JB03-0AX0KTP900 BASIC, KEY AND TOUCH OPERATION, 9"6AV2123-2MA03-0AX0KTP1200 BASIC DP, KEY AND TOUCH OPERATION, 12"6AV2123-2MB03-0AX0KTP1200 BASIC, KEY AND TOUCH OPERATION, 12"Siemens Comfort Panel6AV2124-2DC01-0AX0KTP400 COMFORT,TOUCH AND KEY OPERATION,4"6AV2124-1DC01-0AX0KP400 COMFORT,KEY OPERATION,4"6AV2124-0GC01-0AX0TP700 COMFORT,TOUCH OPERATION,7"6AV2124-1GC01-0AX0KP700 COMFORT,KEY OPERATION,7"6AV2124-0JC01-0AX0TP900 COMFORT,TOUCH OPERATION,9"6AV2124-1JC01-0AX0KP900 COMFORT,KEY OPERATION,9"6AV2124-0MC01-0AX0TP1200 COMFORT,TOUCH OPERATION,12"6AV2124-1MC01-0AX0KP1200 COMFORT,KEY OPERATION,12"6AV2124-0QC02-0AX0TP1500 COMFORT,TOUCH OPERATION,15"6AV2124-1QC02-0AX0KP1500 COMFORT,KEY OPERATION,15"6AV2124-0UC02-0AX0TP1900 COMFORT,TOUCH OPERATION,19'6AV2124-0XC02-0AX0TP2200 COMFORT,TOUCH OPERATION,22"ShippingDHL, UPS, Fedex, TNT, EMS, PostPaymentT/T, Western Union, Moneygram, PaypalMinimum Order Quantity1 pcsTechnical SupportfreeProgramming Softwarefree
