Home > Products > MMA Welding Machine > Electric ARC MMA Welding Machine Inverter Welder High Frequency

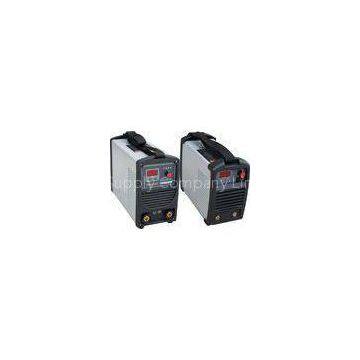

Electric ARC MMA Welding Machine Inverter Welder High Frequency
- T/T L/C D/P D/A
- 7 days
You May Like
-
Small Inverter DC TIG MMA Welding Machine Over Current Protection
-
Electric Mini MMA Inverter Welder Machine 50/60HZ With PWM Technology
-
IGBT DC MMA Inverter Welder With High Duty Cycle , Portable ARC Welding Machine
-
High Frequency Portable MMA Welding Machine Three Phase For Industrial
-
IGBT Inverter Submerged ARC Welding Machine Multi Function
-
High Stability MMA Welding Machine / Compact Inverter MMA Welder Three Phase
Product Details
Brand Name | JL | Place of Origin | China | |
Model Number | PROARC205 |
Product Description
Certification:ISO9001,CE
IGBT Inverter DC MMA small portable electric arc Welding machine ProArc205
Description:
1) Adopting advanced inverter technique and excellent imported raw material, high working efficiency, small in size and light in weight
2) Hot arc starting ?is easy for arc starting
3) Protection equipment are set internally to prevent over heat, over current?to ensure safety operation
4) Strong adaptability to grid, high duty cycle and suitable for continuous working of DIY welding
5) Simple structure, excellent technics, durability, reliability and easy maintenance
6) Stable performance, high efficiency and energy-saving, high efficiency and energy-saving
Features:
IGBT INVERTER
HOT ARC START, ARC FORCE, ANTI-STICK
Stand accessories:
1PC electrode holder 200A X1.5M welding cable
1PC earth clamp 200A X1.5M welding cable
Option:
1. AMP digital display
2. PFC,VRD,dual voltage :110/220V is optioned
3. Front plastic panel
Item | PROARC105 | PROARC135 | PROARC175 | PROARC205 |
Input voltage(V) | 220/230/240V | 220/230/240V | 220/230/240V | 220/230/240V |
Frequency(HZ) | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
Input power capacity(KVA) | 3.3 | 4.5 | 4.8 | 6 |
No-load voltage(V) | 83 | 83 | 83 | 85 |
Output current range(A) | 15-100 | 15-135 | 15-160 | 15-200 |
Rated duty cycle(%) | 35(40℃) | 35(40℃) | 35(40℃) | 35(40℃) |
Weight(KGS) | 3.5 | 4.2 | 4.5 | 5.5 |
Contact Us
- JL Industrial Supply Company Limited
- Contact nameMr. Shu Chat Now
- Phone86-510-82728965
- AddressROOM 1101, 11FLOOR, B TOWER, HUADI COMMERCIAL MANSION, Xianyang, Shaanxi
