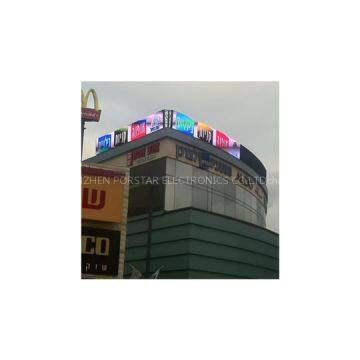

P16 RGB Outdoor Energy Saving LED Panel

Place of Origin	China

Features;1. Special four-color technology, special circuit design, energy saving up to 50%-70%.2. Reduce input power of led chips, making the life time 1.3 times longer.3. Wider color range and vivid color.4. Physical resolution increased by 33.33%, high definition.5. Support one-by-one pixel revises to assure the uniformity of brightness and color.6. Professional and standard flight plug with high quality guarantee.7. High level durable material and IP65 to resist any terrible weather.8. High Brightness control from 7500-10000cd/sqmTechnical Specification:Physical pixel pitch16mmPixel density6096pixel/㎡Pixel configurationDIP 346Virtual pixel configurationN.ABrightness8000nitViewing angle（H/V）140°/70°Best viewing distance10m～60mGray scale16bitColors281TColor temperature6500KRefresh rate>1200HZContrast ratio2000:1Frame rate60HZDisplay lifetime at 50% brightness100,000hDisplay lifetime at full white50,000hMaximum power consumption800W/㎡Average power consumption200W/㎡Control ModeSynchronous display with control PC by DVIDriving way1/4 scanInput voltageAC90～240VOperating voltageDC 5VOperating ambient temperature-20～50℃Operating ambient humidity10%～90%Support InputComposite, S-Video, Component, VGA, DVI, HDMI, HD_SDIControl DistanceEthernet cable<120m or Fiber Optic<10Km ? ? ? ? ? ? ? ?Support VGA Mode1024×768, 1280×1024, 1600×1200, 1920×1280Brightness CorrectionPixel, Module, CabinetInstallationFixedCabinet dimension（W×H×D）128 X 960 X 130Cabinet area1.2288㎡Cabinet weight72KGCabinet resolution80 X 60Cabinet materialIronIngress protection levelFront：IP65 ?Rear：IP54Module dimension（W×H）320mm X 320mmModule resolution（W×H）20 X 20
