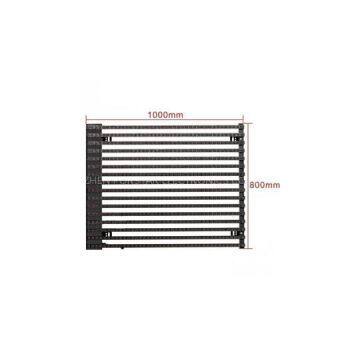

P25 Outdoor LED Media Mesh Screen

Place of Origin	China

Features:Energy SavingHigh quality power supply, supports Wide voltage input (110-240A VC), features power factor correction (PFC) +Synchronous rectification function, self-cooling design.Thin and LighterAll Aluminum alloy components, thickness are only 50MM and over 65% lighter than Traditional LED Display.TransparencyBar Structure, ultrathin and portable, reduce wind, transmission.Easy InstallationSimple display structure, front/back maintenance, fast installation and disconnection, 5seconds for one person.Warranty Stable Operation80% fewer connectors than traditional led display, reduced failure rate, suited to large led media facade project.Technical Specification:Product parameterPixel pitchHorizontal 50mm;Vertical 25mmPixel configuration3R3G3B/CREE,NICHIA,EPISTARPixel density800dot/㎡Cabinet size1000mmX800mmX50mmCabinet resolution20dotX16dotCabinet weight22Kg/㎡Brightness7500CD/㎡Protection GrandIP68 front/IP65/backScan model1/1scan(static)Frame Frequency60HzRefresh rate≥1200HZGray scale16bitsTransparency Rate55%Max power consumption460W/㎡Average power consumption220W/㎡Viewing angleHorizontal 120° ?vertical 60°Viewing distance≥10mPower supply220VAC(11VAC)Working temperature-35°C to +50°CWorking Humidity10% to 90%Installation methodFixed/RentalLife time≥100000HSystem ControllerLINSN/NOVAControl distanceCate5:100m, Single model fiber 10KM
