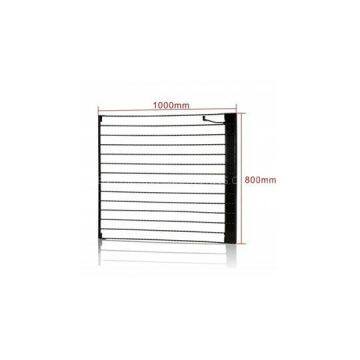

P31.25-50 Outdoor Video LED Wall Curtain

Place of Origin	China

Features:Energy SavingSelf-cooling design, no need for extra supplemental cooling facilities, lower carbon, environmentally friendly...Thin and LighterAll Aluminum alloy components, thickness are only 50MM and over 65% lighter than Traditional LED Display.TransparencyBar Structure, ultrathin and portable, reduce wind, transmission.Easy InstallationSimple display structure, front/back maintenance, fast installation and disconnection, 5seconds for one person.Warranty Stable Operation80% fewer connectors than traditional led display, reduced failure rate, suited to large led media facade project.CustomizedCustomize as needed, satisfy customer various display demand.Technical Specification:Product parameterPixel pitchHorizontal 31.25mm;Vertical 50mmPixel configuration1R1G1B/CREE,NICHIA,EPISTARPixel density640dot/㎡Cabinet size1000mmX800mmX50mmCabinet resolution32dotX16dotCabinet weight18Kg/㎡Brightness2500CD/㎡Protection GrandIP68 front/IP65/backScan model1/1scan(static)Frame Frequency60HzRefresh rate�?200HZGray scale16bitsTransparency Rate75%Max power consumption260W/㎡Average power consumption120W/㎡Viewing angleHorizontal 120��  vertical 60��Viewing distance�?0mPower supply220VAC(11VAC)Working temperature-35��C to +50��CWorking Humidity10% to 90%Installation methodFixed/RentalLife time�?00000HSystem ControllerLINSN/NOVAControl distanceCate5:100m, Single model fiber 10KM
