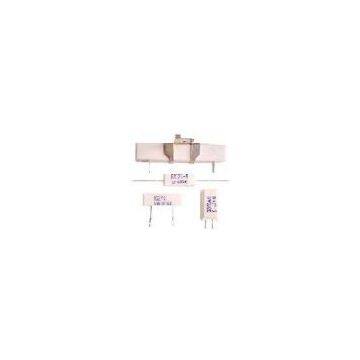

RX27 Cement wire wound resistor China (1W,2W,3W,5W,10W,15W,20W,25W,30W,40W,50W,100W）
Negotiable
/ Piece
1000 Pieces(Min.Order)
- 2500000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
RX24 Aluminium house wire wound resistor China（5W,10W,25W,50W,75W,100W,150W,200W,250W,300W,400W,500W）
-
RI40 Metal glass glaze resistor China（1/4W,0.25W,1/2W,0.5W,1W,2W,3W）
-
RI80 High voltage metal glass glaze resistor China （1/2W,0.5W,1W,2W,3W,5W,8W,10W,20W,30W,50W,80W,100W,200W）
-
Trapeziu Aluminum housed Wire wound Resistor China(40W,60W,80W,100W,120W,150W,200W,300W,400W,500W,800W,1000W,1200W,1500W,2000W)
-
RXW High power wave wire wound resistor China (10W,20W,30W,40W,50W,80W,100W,150W,200W,300W,500W,800W,1000W,2000W,3000W,5000W,8000W,10000W)
-
ZB1,ZB2,ZB3,ZB4 Plate resistor China
Product Details
| Brand Name | BT | Place of Origin | China | |
| Model Number | RX27(1W-40W) |
Product Description
RX27 Cement wire wound resistor China (1W,2W,3W,5W,10W,15W,20W,25W,30W,40W,50W,100W)
IN: RX27 Cement wire wound resistor China,cement wirewound resistor China,rated power: 1W,2W,3W,5W,10W,15W,20W,25W,30W,40W,50W,100W,SQP,SQZ,SQH,SQHG,SQM
Features and Purposes
○This product features low resistance, small size, high load and stable performance.
○Typically enveloped in porcelain housing with service temperature ranging between:-55~+155℃.
○Used for voltage dividing and power load in the circuit.
Overall Dimensions
| Type | Power (W) | Size(mm) |
Resistance range (Ω) (±5%) |
||||||||||
| L±1.5 | W±1 | H±1 | P±1.5 | l±1 | фd | G | C | D | F | ФE | |||
|
RX27-1 (SQP) |
1W | 12.5 | 5.5 | 5.5 | - | 23 | 0.62 | - | - | - | - | - | 0.2~270 |
| 2W | 18 | 6.5 | 6.5 | - | 21 | 0.75 | - | - | - | - | - | 0.1~820 | |
| 3W | 22 | 8 | 8 | - | 35 | 0.75 | - | - | - | - | - | 0.1~3.3K | |
| 4W | 22 | 8 | 8 | - | 35 | 0.75 | - | - | - | - | - | 0.1~3.3K | |
| 5W | 22 | 10 | 10 | - | 35 | 0.75 | - | - | - | - | - | 0.1~3.3K | |
| 6W | 35 | 10 | 10 | - | 35 | 0.75 | - | - | - | - | - | 0.1~7.5K | |
| 7W | 35 | 10 | 10 | - | 35 | 0.75 | - | - | - | - | - | 0.1~7.5K | |
| 8W | 35 | 10 | 10 | - | 35 | 0.75 | - | - | - | - | - | 0.1~7.5K | |
| 9W | 48 | 10 | 10 | - | 33 | 0.75 | - | - | - | - | - | 0.1~12K | |
| 10W | 48 | 10 | 10 | - | 33 | 0.75 | - | - | - | - | - | 0.1~12K | |
| 11W | 48 | 10 | 10 | - | 33 | 0.75 | - | - | - | - | - | 0.1~12K | |
| 15W | 48 | 12.5 | 12.5 | - | 33 | 0.75 | - | - | - | - | - | 0.1~12K | |
| 20W | 60 | 14 | 14 | - | 33 | 0.75 | - | - | - | - | - | 0.2R~30K | |
| 25W | 60 | 14 | 14 | - | 33 | 0.75 | - | - | - | - | - | 0.2R~30K | |
| Type | Power (W) | Size(mm) |
Resistance range (Ω) (±5%) |
||||||||||
| L±1.5 | W±1 | H±1 | P±1.5 | l±1 | фd | G | C | D | F | ФE | |||
|
RX27-3 (SQZ) |
3W | 22 | 9 | 9 | 10 | 15 | - | 7 | - | - | - | - | 1R~120K |
| 4W | 22 | 9 | 9 | 10 | 15 | - | 7 | - | - | - | - | 1R~120K | |
| 5W | 28 | 10 | 10 | 15 | 15 | - | 7 | - | - | - | - | 0.1~6.2K | |
| 6W | 28 | 10 | 10 | 15 | 15 | - | 7 | - | - | - | - | 0.1~6.2K | |
| 7W | 36 | 10 | 10 | 20 | 15 | - | 7 | - | - | - | - | 0.1~7.5K | |
| 8W | 36 | 10 | 10 | 20 | 15 | - | 7 | - | - | - | - | 0.1~7.5K | |
| 9W | 48 | 10 | 10 | 30 | 15 | - | 7 | - | - | - | - | 0.1~12K | |
| 10W | 48 | 10 | 10 | 30 | 15 | - | 7 | - | - | - | - | 0.1~12K | |
| 11W | 48 | 10 | 10 | 30 | 15 | - | 7 | - | - | - | - | 0.1~12K | |
| 15W | 48 | 12.5 | 12 | 30 | 34.5 | - | 10 | - | - | - | - | 0.2~18K | |
| 20W | 63 | 15 | 13 | 42 | 34.5 | - | 10 | - | - | - | - | 0.2~20K | |
| 25W | 63 | 15 | 13 | 42 | 34.5 | - | 10 | - | - | - | - | 0.2~20K | |
| 30W | 75 | 19 | 19 | 55 | 29.5 | - | 10 | - | - | - | - | 0.3~39K | |
| 40W | 88 | 19 | 19 | 72 | 29.5 | - | 10 | - | - | - | - | 0.5~56K | |
| 50W | 88 | 19 | 19 | 72 | 29.5 | - | 10 | - | - | - | - | 0.5~56K | |
| 100W | 133 | 24 | 24 | 113 | 29.5 | - | 10 | - | - | - | - | 1R~1.5K | |
| Type | Power (W) | Size(mm) |
Resistance range (Ω) (±5%) |
||||||||||
| L±1.5 | W±1 | H±1 | P±1.5 | l±1 | фd | G | C | D | F | ФE | |||
|
RX27-4H (SQH) |
10W | 48 | 10 | 10 | 30 | 9 | - | 5 | 5 | 12 | 12 | 4 | 0.1~3.3K |
| 11W | 48 | 10 | 10 | 30 | 9 | - | 5 | 5 | 12 | 12 | 4 | 0.1~7.5K | |
| 15W | 48 | 12 | 12.5 | 30 | 9 | - | 6 | 5 | 14 | 12 | 4 | 0.1~12K | |
| 20W | 63.5 | 14 | 14.5 | 42 | 9 | - | 6 | 5 | 14 | 12 | 4 | 0.2~18K | |
| 25W | 63.5 | 14 | 14.5 | 42 | 9 | - | 6 | 5 | 14 | 12 | 4 | 0.2~20K | |
| 30W | 75 | 19 | 19 | 55 | 12 | - | 7.5 | 7 | 16 | 18 | 4 | 0.3~39K | |
| 40W | 88 | 19 | 19 | 72 | 12 | - | 7.5 | 7 | 16 | 18 | 4 | 0.5~56K | |
| Type | Power (W) | Size(mm) |
Resistance range (Ω) (±5%) |
||||||||||
| L±1.5 | W±1 | H±1 | P±1.5 | l±1 | фd | G | C | D | F | ФE | |||
|
RX27-5 (SQM) |
1W | 10 | 10 | 5.2 | 4 | 4.5 | 0.62 | - | - | - | - | - | 0.1~100 |
| 2W | 20.5 | 11 | 7 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~820 | |
| 3W | 25 | 12 | 8 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~3.3K | |
| 4W | 25 | 13 | 10 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~3.3K | |
| 5W | 25 | 13 | 10 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~3.3K | |
| 6W | 39 | 13 | 10 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~7.5K | |
| 7W | 39 | 13 | 10 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~7.5K | |
| 8W | 39 | 13 | 10 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~7.5K | |
| 9W | 51 | 13 | 10 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~12K | |
| 10W | 51 | 13 | 10 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~12K | |
| 11W | 51 | 13 | 10 | 4 | 4.5 | 0.75 | - | - | - | - | - | 0.1~12K | |
| 15W | 51 | 13 | 10 | 4 | 5 | 0.75 | - | - | - | - | - | 0.1~12K | |
| 20W | 35 | 16 | 12 | 8 | 5 | 0.75 | - | - | - | - | - | 0.1~12K | |
Power Consumption Reduction Curve
