Product Details
| Brand Name | BT | Place of Origin | China | |
| Model Number | RXF(1/2W-3W) |
Product Description

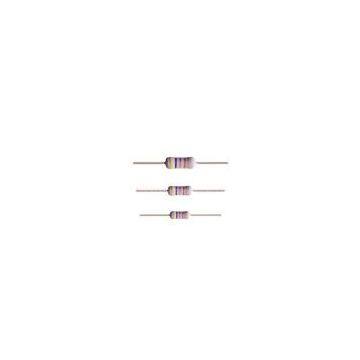

RXF Wire wound fusing resistor China (1/4W,0.25W,1/2W,0.5W,1W,2W,3W)
IN: RXF Wire wound fusing resistor China, wire wound fusible resistor,energy light resitor, rated power:1/4W,0.25W,1/2W,0.5W,1W,2W,3W;fusing time in 60s.
Features and Purposes
1.Providing features as a wire-wound resistor
2.Immediate disconnection of overload voltage providing circuit protection
3.Used in energy-saving lamps, chargers and electronic circuits
4.Service temperature range:-55-+155t.
5.Short-time overload R/R little less than (1%R+0.05Ω) with no visible damage on the outside
6.Withstand voltage with no breakdown or sparkover
7.Lead-out end intensity R/Rless than ± (1%R+0.05Ω) with no visible damage on the outside
8.Stable humidity R/R less than ±5%
9.Durability R/R less than ±5%
Overall Dimensions
|
Model |
Rated power(W) |
Size(mm) |
|||
|
L |
D |
d |
l |
||
|
RXF |
1/4W |
6.3±0.5 |
2.3±0.5 |
0.45±0.05 |
28±2 |
|
1/2W |
9.5±0.5 |
3.5±0.5 |
0.55±0.05 |
28±2 |
|
|
1W |
11.5±0.5 |
4.5±0.5 |
0.65±0.05 |
28±2 |
|
|
2W |
15.5±1.0 |
5.0±0.5 |
0.75±0.05 |
28±2 |
|
Key Performance Parameters
|
Model |
Rated power at 70t.(W) |
temperature coefficient(α) |
element voltage |
voltage |
consumption multiple |
resistance rage |
time |
|
RXF |
1/4W |
±250 |
Not applicable |
400 |
16 |
1-150Ω |
less than 60 |
|
1/2W |
|||||||
|
1W |
|||||||
|
2W |
Power Consumption Reduction Curve
