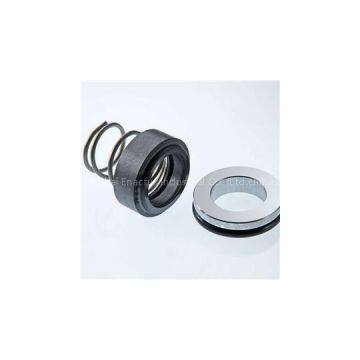

Enactus-M2N-Burgmann M2N Replacement

Place of Origin	China

Features For plain shafts Single seal Unbalanced Conical spring rotating Dependent on direction of rotation Advantages Economical seal solution No damage of the shaft by set screws Short installation length possible (G16) Operating range Shaft diameter: d1 = 6 ... 38 mm (0.25" ... 1.5") Pressure: p1 = 10 bar (145 PSI) Temperature: t = -20 °C ... 140 °C (-4 °F ... 355 °F) Sliding velocity: vg = 15 m/s (50 ft/s) Axial movement: ±1.0 mm Materials Seal face: Carbon graphite resin impregnated (B) Seat G9: Silicon carbide (Q1, Q2), Special cast CrMo steel (S), Aluminium oxide (V) Recommended applications Pulp and paper industry Water and waste water technology Building services industry Water pumps Heating circulation pumps Service Provide special design According to the requirements and conditions for the custom processing Dimensions in mm d1 d3 d6 d7 d8 d11 d12 db l1N l31) l5 l6 l7 l8 l10 l12 l14 l15 l16 l18 l19 l211) l28 R 6 15 – – – 11.8 16 8 – – – – – – – 6.5 5.6 1.2 3.8 – – 10.9 – 1.2 8 18 – – – 15.5 19.2 11 – – – – – – – 8 7 1.2 3.8 – – 15.5 – 1.2 10 20 17 21 3 15.5 19.2 13 40 17.5 1.5 4 8.5 17.5 7.5 7.5 6.6 1.2 3.8 – – 15.9 6.6 1.2 12 22 19 23 3 17.5 21.6 16 40 17.5 1.5 4 8.5 17.5 7.5 8 7 1.2 3.8 – – 16 6.6 1.2 14 25 21 25 3 20.5 24.6 18 40 17.5 1.5 4 8.5 17.5 7.5 8 7 1.2 3.8 – – 16 6.6 1.2 15 27 – – – 20.5 24.6 19 – – – – – – – 7.5 6.6 1.2 3.8 – – 17.4 – 1.2 16 27 23 27 3 22 28 21 40 19.5 1.5 4 8.5 17.5 7.5 8.5 7.5 1.5 5 – – 19 6.6 1.5 18 30 27 33 3 24 30 23 45 20.5 2 5 9 19.5 8.5 9 8 1.5 5 15 7 20.5 7.5 1.5 20 32 29 35 3 29.5 35 26 45 22 2 5 9 19.5 8.5 8.5 7.5 1.5 5 15 7 22 7.5 1.5 22 35 31 37 3 29.5 35 28 45 23.5 2 5 9 19.5 8.5 8.5 7.5 1.5 5 15 7 23.5 7.5 1.5 24 38 33 39 3 32 38 30 50 25 2 5 9 19.5 8.5 8.5 7.5 1.5 5 15 7 25 7.5 1.5 25 40 34 40 3 32 38 31 50 26.5 2 5 9 19.5 8.5 8.5 7.5 1.5 5 15 7 26.5 7.5 1.5 26 41 – – – 34 40 32 – – – – – – – 9 8 1.5 5 – – 26.5 – 1.5 28 43 37 43 3 36 42 35 50 26.5 2 5 9 19.5 8.5 10 9 1.5 5 15 7 26.5 7.5 1.5 30 47 – – – 39.2 45 37 – – – – – – – 11.5 10.5 1.5 5 15 7 25 – 1.5 32 48 – – – 42.2 48 39 – – – – – – – 13 10.5 1.5 5 15 7 28.5 – 1.5 35 53 – – – 46.2 52 43 – – – – – – – 13.5 11 1.5 5 15 7 28.5 – 1.5 38 56 – – – 49.2 55 47 – – – – – – – 13 10.3 1.5 5 16 8 32 – 1.5
