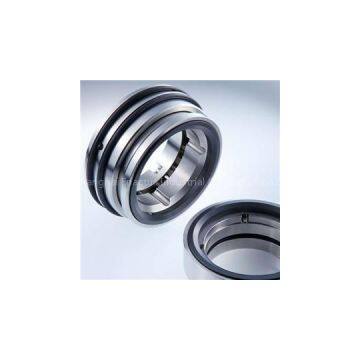

Enactus-Pulace Burgmann Pulace Replacement

Place of Origin	China

Features Single seal Balanced Independent of direction of rotation Stationary multiple springs Springs and pins not in contact with the medium Advantages Stationary seat and/or seal face replaceable Can be adopted under positive pressure or under back pressure Operation in vacuum without additional seat locking possible Recommended applications Sugar industry Pulp and paper industry Highly concentrated black water Green water White water Pulp suspensions Chemical solutions Alkaline solutions Slurries Highly viscous liquids Raw sludge pumps Thick juice pumps Conveying and bottling of dairy products Operating range Pressure: p = 10 bar (145 PSI) Temperature: t = -20 °C … +200 °C (-4 °F … 392 °F) Sliding velocity: vg = 20 m/s (66 ft/s) Viscosity: … 100 Pa·s Solids content: … 20 % Materials Seal face and seat: Silicon carbide (Q1), Tungsten carbide (U7) Secondary seals: EPDM (E) Metal parts: CrNiMo steel (G)Service Provide special designAccording to the requirements and conditions for the custom processingDimensions in mmdd1d2d3ll12046515771342551586471343056636971343562687475374069768280384578838980385078869280385586929880386091981047837659710210881387010210911580387510711412082398011211912582408511812413085409012813714385429512813714385421001351441508542
