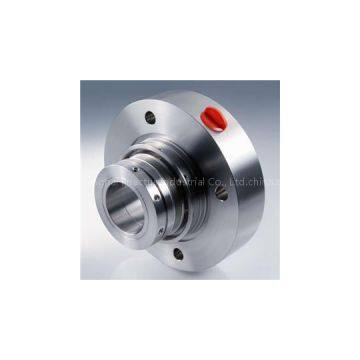

Enactus-LY9SA Burgmann LY9SA Replacement

Place of Origin	China

Features API 682 Category 2 and 3, Type B, Arrangement 1 seal Single Seal Balanced Cartridge unit Rotating metal bellows Shrink fitted seal ring and solid mating ringAdvantages Compact design Bellows design allows use of balanced seal with plain sleeve Absence of dynamic O-Ring eleminates/reduces seal face hang-up Bellows design minimizes variation in face load due to shaft expansion or face wear Resistant to abrasive particles in the medium, no shaft or sleeve fretting Low heat generation and power consumption due to narrow seal face width Longer seal lifeOperating range Shaft diameter: d1 = 20 ... 110 mm (0.79" ... 4.33")Pressure: p = vacuum ... 20 bar (290 PSI)Temperature: t = -40 C ... +200 C (-40 F ... +392 F)Sliding velocity: vg ... 23 m/s (75 ft/s)Materials Seal ring: Blister resistant carbonMating ring:Silicon carbide SSiC (Q1), RBSiC (Q2)Bellows: Hastelloy?C-276 (M5),option: Inconel?718 (M6)Secondary seals:EPDM (E), NBR (P), FKM (V), FFKM (K)Metal parts: CrNiMo steel 316 (G),Hastelloy??C-276 (M5)Recommended applications Refining technology Oil and gas industry Petrochemical industry Chemical industry Power plant technology LPG plants API 610 / ISO 13709 pumps Process pumpsService Provide special designAccording to the requirements and conditions for the custom processing
