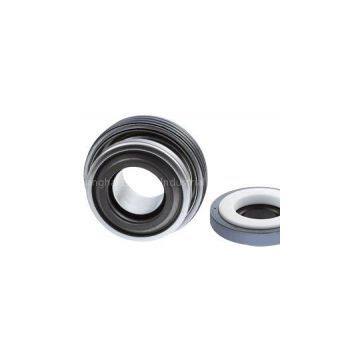

Enactus -EH700 Burgmann EH700 Replacement

Place of Origin	China

Structure discription:Equivalent to Burgmann EH700Single sealStationary spring-loaded unit enables operation in high-range loads areaBalancedIn-house manufactured carbon seal facesOperating range:d1 = 15 … ?35 mmPressure: p1 = 15 bar (218 PSI),vacuum up to 0.1 barTemperature: t = -20 °C … ?+100 °C (-4 °F … ?+212 °F)Sliding velocity: vg = 10 m/s (33 ft/s)Axial movement: ± 1.0 mmMaterials:Seal face: Carbon graphite resin impregnated (B)Seat: Aluminium oxide (V, V1), Silicon carbide (Q1, Q2)Secondary seals: NBR (P), FKM (V)Metal parts: CrNi steel (F)Advantages:The seal for stationary applications. The SS-EH700 is based on a unique stationary spring loaded unit that enables the seal to operate under high speed and high pressure. An additional advantage of the seal is the balanced design,which ensures good sealing performance in high-load conditions.Enactus?-EH700Dimensions(mm)dd1d2d3d4d5ll1l2l3l4l515224112223429.59.50.6---2030451227.24531110.6213.42535522233.6523711.50.82.514.23545663243.66641.612.50.8415.2
