Biomass Boiler Flue Gas Treatment System , Smoke Scrubber Systems Scour Resistance

Production Description

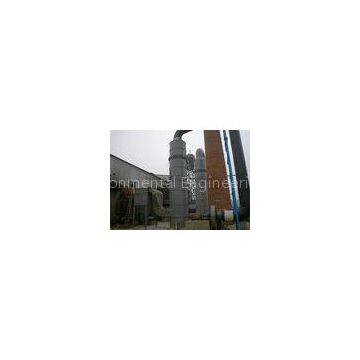

Singer Tower water film dust remover is mainly composed of the main cylinder, the overflow tank and water coil, spillway hole, slag hole, flue gas import and export, etc. The equipment is separated into modules and assembles at site. The construction period is short.

While the flue gas enters into the dust collector, alkaline water overflows from upper tower sink. It forms 5mm water film layer on the cylinder wall. The flue gas enters from bottom body with tangential velocity, which provides centrifugal force to make the gas rise and rotate along the wall inside the device. The flue gas gets in touch with water film of the cylinder body under the action of centrifugal force. While the dust is humidified by water film, sulfide reacts with alkaline droplets and flows into the circulation tank with the water from the bottom spillway hole. After purification, gas rises through the upper cylinder cone part and completes the purification process.

Equipment Characteristics

1. The venturi spray device is made from 316L or other coequal material; spray evenly;2. Equipment can bear under 250℃ high temperature flue gas;3. Water film dust collector using external protection plate, inner lined with granite, adopts high strength anti seepage acid among castable vibration casting;4. The tank is made of acid and alkali resistance, high temperature sintering ceramic material. It also uses the partition to the overflow structure, the cylinder body wall is smooth;5. Equipment made of modular, and it only takes 1 day to complete the installation at site, which reduces the construction period;6. Each cylinder outlet uses concave joints, sealing treatment juncture place when installation, and ensure that joint air leakage leaking;7. Internal corrosion protection of the desulphurization dust collector has unique advantages adopts scour resistance, corrosion resistance, high temperature resistant. Its service life is 10 times longer than light anti-corrosion materials.
