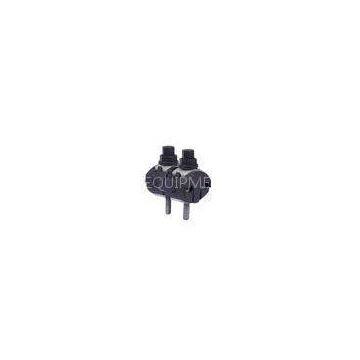

Copper or Brass ABC Fittings Insulation Piercing Connector Suppliers
- T/T L/C D/P D/A
- 7 days
You May Like
-
15 - 24KV Dropout Fuse Porcelain Cutouts High Voltage Fuse 100A 200A Porcelain Grey
-
OEM 200A Dropout Fuse Porcelain Cutouts High Voltage 15-24KV
-
24KV Outdoor High Voltage Drop Out Fuse Cutout 100A Grey Porcelain
-
Outside Dropout Fuse Porcelain Cutouts 100A 200A , Fuse Cut Out
-
Composite Horizontal Line Post Insulator FC FPS Type High Tension Insulators
-
Outdoor Dropout Fuse Porcelain Cutouts With Ultra Violet Resistant Coating
Product Details
| Brand Name | YIXIN | Place of Origin | China | |
| Model Number | BC |
Product Description
Certification:ISO,CE
BC Type ABC Fittings Insulation Piercing Connector
Note :
1. The stainless steel bolts and nuts,washer can change it according requirement.
2. The tin plating copper teeth and aluminum alloy teeth can change it according requirement.
Specification :
| Product Description |
Main cable cross section mm2 |
Tap off cable cross section mm2 |
Number of bolts |
Head size mm |
| BC09K* | 16-120 | 1.5-6 | 1 | 13 |
| BC10K | 6-70 | 4-35 | 1 | 13 |
| BC14K | 16-120 | 6-70 | 1 | 13 |
| BC16K | 16-120 | 16-120 | 1 | 13 |
| BC12/2K | 16-120 | 10-120 2*10-50 | 2 | 13 |
* Delivered with one side of line open,one side of line closed,closed main ot tap sides can be opened according to requirement.
Description :
This type insulation piercing connectors are suitablr for aluminum and copper conductors.The connector consists of two glassfibre reinforced polyamide case halves with penetration teeth.The contact is achieved by tightening the bolts.Agrease is used for protecting the contact points against ingress of moisture.
