JBD type Tap Connectors ABC Fitting for L.V Insulated Overhead Networks
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Anti - Wind High Voltage Porcelain Insulators / Polymer Disc Insulator 35KV 66KV 110KV 220KV
-
Highy Voltage Composite Polymer Insulator For Electrical Railway Station Post Insulators
-
Optical - Fiber Composite Polymer Electrical Porcelain Insulators For Optical Transformer
-
Distribution Line Composite Polymer Insulator / Electric Pole Insulators
-
10KV Insulation Piercing Connector Suppliers For ABC Cable TH10 Type
-
PA66 IPC Grounding Piercing Connector ABC Fittings 10KV OEM
Product Details
| Brand Name | YIXIN | Place of Origin | China | |
| Model Number | JBD |
Product Description
Certification:CE,ISO9001

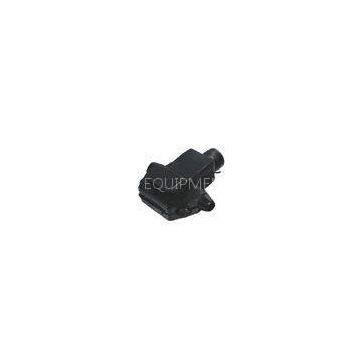

JBD type Tap Connectors ABC Fitting for L.V Insulated Overhead Networks
Description :
A broad usage in the low voltage insulation lines,leading the branch connection from the main conductor.
T connection of low voltage insulation wire serive and cable branch connection for building distribution system.
The material for the inside body is adopted high strength aluminium alloy 6063.
And the outside insulation cover is used polyvinyl chloride(PVC)
| Type | Applicable conductor range mm2 | Bolts Qty | |
| Main line section mm2 | Branch line section mm2 | ||
| JBD-1 | 16-25 | 4-25 | 1 |
| JBD-2 | 35-70 | 6-25 | 1 |
| JBD-3 | 35-70 | 35-70 | 1 |
| JBD-4 | 35-95 | 4-50 | 1 |
| JBD-5 | 70-150 | 4-50 | 2 |
Advantages :
The installation of IPC require tightening of the bolt with the basic wrench and as the shear head is designed to break at the rated torque,the installation cost is greatly reduced and the problems that may arise due to over torque or under torque is eliminated As the connector’s teeth are designed to pierce the insulation of the ocnductor to make electrical contact and are prefilled with an neutral grease,the cost of stripping the conductor at the site and the cost of application of the an neutral grease are considerably reduced. The body of IPC is of insulated material which avoids the use of tape or special insulation cover. Can be branch of cables without striping the insulated coat and the connector was completely insulated,Make branch in the random location of cable without cutting off the main cable.Simple and reliable installation .Just need sleeve spanner,can be installed with on live line. IPC assures safety of the installation personnel as the connectors body is fully insulated to withstand 3/4/6 kv and the enclosure are regularly tested for protection degree ratings.Simple Installation?
