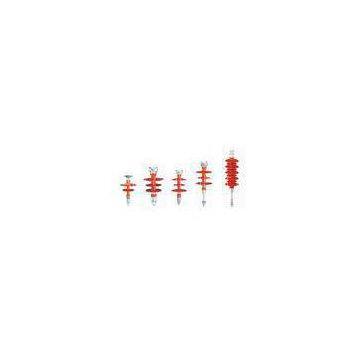

Red Pin Composite Polymer Insulator for High and Medium Voltage

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YIXIN		Place of Origin	China
Model Number	FPQ

Product Description

Delivery Time:According to order quantity
Certification:ISO9001

?
Red Color Pin Composite Polymer Insulator for High and Medium Voltage?
?
?
Description:

Our Composite Pin Type Insulator is applied to high voltage power line serivce. And have features of good gydrophobicity, anti-ageing, anti-leakage trace and electric erode proof, tensile strength and bending strengh, strong mechanical strength, shock resistance good quakeproof and brittle failure proof, light weight, easy to installation, and the installation outline of top and base are the same size with porcelain-pin type, they can exchange to use each other.

Product Characteristic:

1. Good electrical specification and strong mechanical strength.

2. Fine anti-pollution,strong prevent flash accident.

3. Small volume, light weight,easy for transportation and installation.

4. The shed has favorable waterproof performance and good anti-ageing.

5. Strong resistance to impact and quakeproof performance.

6. Special for badly polluted areas,high mecha nical tension load,long span and compact power line.

Specifications:

Spec&Type	Rated Voltage (KV)	Rated Mechanical Tensionload (KN)	Strcucture Height (mm)	Min Arc Distance (mm)	Min Normal Creepage Distance (mm)	Full Wave Lightning Impulse Withstand Voltage (KV)	1 Min Power Frequency wet Withstand Voltage
FPQ-1/3T16	1	3	118	65	80	42	18
FPQ2-10/5T	10	5	224	152	310	95	42
FPQ2-10/5M	10	5	224	152	310	95	42
FPQ3-10/5T	10	5	250	185	450	105	50
FPQ3-10/5M	10	5	250	185	450	105	50
FPQ-20/8T	20	8	400	290	680	170	70
FPQ-35/6T	35	6	490	380	920	230	95

?
FAQ:
?
A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit
?
?
B. Would you accept OEM/ODM service?
Glad to say that there is planning department, technical department and mould tooling center in
our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.
?
?
C. Would you offer free sample?
Samples are freely provided and shipping costs is paid on your end usually.
?
?
D What's your guaranty time?
At least 2 years and depend the product
?
?
E What's your payment term?
T/T, L/C; other terms is negotiable after further check.
?
