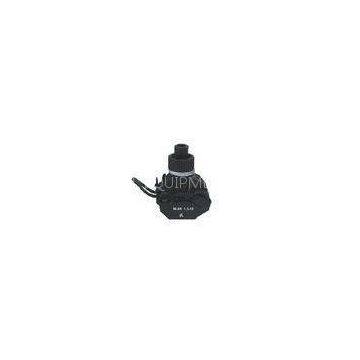

PC Service Entrance ABC Fitings Insulation Piercing Connector
- T/T L/C D/P D/A
- 7 days
You May Like
-
Copper or Brass ABC Fittings Insulation Piercing Connector Suppliers
-
15 - 24KV Dropout Fuse Porcelain Cutouts High Voltage Fuse 100A 200A Porcelain Grey
-
OEM 200A Dropout Fuse Porcelain Cutouts High Voltage 15-24KV
-
24KV Outdoor High Voltage Drop Out Fuse Cutout 100A Grey Porcelain
-
Outside Dropout Fuse Porcelain Cutouts 100A 200A , Fuse Cut Out
-
Composite Horizontal Line Post Insulator FC FPS Type High Tension Insulators
Product Details
| Brand Name | YIXIN | Place of Origin | China | |
| Model Number | PC |
Product Description
Certification:ISO,CE
PC Service Entrance ABC Fittings Insulating Piercing Connector
Description :
1. Connector for street lighting and small house connections up to 10mm2
2. Connector for main line current application
3. Suitable for live line tapping into aerial bundle conductor AL-AL or AL-CU
4. Water tight connection with standing 6kv flahover in water
5. Shear head
6. Single bolt wide range connector
7. Tap conductor may leave either side
8. Connector for heavy duty full line current applications
9. Double bolts shear head with four contact plates
10. Separate caps balance the connector geometry and yield a low stable contact resitance
11. Tap conductor may leave either side.
Specification :
| TYPE | Applicable conductor range mm2 | Bolts | |
|
Main line section mm2 |
Branch line section mm2 |
||
| PC1-1 | 16-95 | 1.5-10 | 1 |
| PC2-1 | 16-95 | 4-35 | 1 |
| PC3-1 | 25-95 | 25-95 | 1 |
| PC4-1 | 50-185 | 6-35 | 1 |
| PC3-2 | 25-95 | 25-95 | 2 |
Notes :
1. The stainless steel bolts and nuts,washer can change it according requirement.
2. The Tin plating brass teeth and aluminium alloy teeth can change it according requirement.
How to choice the Teeth :
1. Tin plating copper teeth : Good electrical conductivity.
2. Tin plating brass teeth : Good puncture effect
(The teeth plating with tin ,can use for copper conductor also can use for aluminium conductor )
3. Aluminium alloy teeth : only can use for aluminium conductor.
