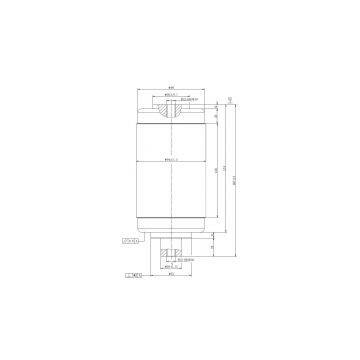

TD 12kv 1600A 31.5A (JUC619) vacuum interrupter for VCB

TD 12kv 1600A 31.5A (JUC619) vacuum interrupter for VCB

Maintechnical parameters

Rated voltage: 12 KV

Rated current: 1600A

Rated power frequency withstand voltage: 48KV

Rated lightning impulse withstand voltage:85 KV

Rated short circuit breaking current:31.5KA

Rated short circuit making current(peakvalue): 80KA

Breaking operations under rated shortcircuit breaking current: 30 times

Rated short time withstand current: 31.5KA

Rated withstand current(peak value): 80KA

Rated duration of short circuit: 4 s

Mechanical life: 10,000 times

Closing force due to bellows and atmosphere:120±50 N

Force required to hold contacts opening atfull stroke: 190±50 N

Circuit resistance at lowest rated contactsforce: ≤20μΩ

Storage life: 20 years

Limiting abrasion of contacts: 3 mm

Mechanicalrequiements of vacuum circuit breaker

Clearance between opening contacts: 11±1 mm

Average opening speed(Contacts closingposition~75% contacts opening distance): 1.1±0.2 m/s

Average closing speed(30% contacts openingdistance~contacts closing position): 0.6±0.2 m/s

Rated contacts pressure: 3150±200 N

Contacts bouncing duration at closingoperation: ≤2 ms

Contacts re-bouncing clearance at openingoperation: ≤2 mm

Synchronism of three phases: ≤1 ms

* It Needs additionalinsultating protection.
