HVJ30 1.14kv vacuum contactor 1000A 1250A

FOB Price

US$ 260 - 260 / Piece

20 Pieces(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jucro		Place of Origin	China
Model Number	HVJ30-1.14

Product Description

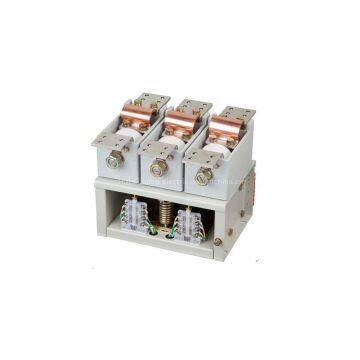

HVJ30 1.14kv vacuum contactor 1000A 1250A

HVJ30-1.14/1000、1250 series AC vacuumcontactor is applicable for AC 50HZ power system of rated voltage 1.14KV andrated current up to 1000 A～1250Ato open and close circuit, start and controlAC motor frequently. It is suitable for composed magnetic starter with variousprotective devices (JDB electronic integrated protector, JR9 type over currentprotection device, resistance-capacitance absorbers).It is particularly suitable for compose a explosion-proof magnetic starter andlarge mineral switchgear.

Rated voltage: 1.14 kv

Rated current: 1000A 1250A

Making capacity(A): 5000（100 times）

Breaking capacity(A): 4500（10 times）

Limit breaking capacity(A): 5000（3 times）

Electrical life times(AC3): 600,000times

Electrical life times(AC4): 6,000times

Mechanical life times: 1,000,000times

Rated operating frequency (AC3): 600 times/h

Rated operating frequency (AC4): 120 times/h

Short-time operating frequency（20s）: 1000 times/h

Contacts separation: 2.8±0.1 mm

Over travel: 1.0±0.1 mm
