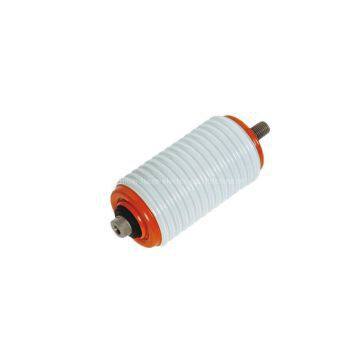

HCJ3 12KV 630A vacuum interrupter for vacuum contactor

HCJ3 12KV 630A vacuum interrupter forvacuum contactor

1. Brief introduction

The interrupteradoption porcelain and ceramics makes to insulate the outer shell. Contact isWCCu metal alloy material advanced technique of adoption Including bulk small.Breaking the abiliting strong the life span is long, maintenanle is simple ,noexplosion dangerous, no contaminate and the noise is low . The pack vacuumcontactor can operate the ebery kind of electric appliances equipments, andfuse match f-c cabinet

 2. Vacuum Tube main techniqueparameter

Rated voltage: 12 kv

Rated cureent: 630A

Rated making current: 6.3KA

Rated breaking current: 5.04KA

Limiting breaking current: 6.3KA

Rated short-time withstand current: 6.3KA

Rated short-time withstand voltage: 42 kv

Rated lighting impulse voltage: 75 kv

Circuit resistance at lowest rated contacts force: ≤80μΩ

Electrical life: 250,000 times

Mechanical life: 5000,000 times

Closing force due to bellows and atmosphere: 70±20 N

Force required to hold contacts open at full stroke: 100±30N

Limiting abrasion of contacts: 3 mm

Internal gas pressure: ≤1.33×10^-3 Pa

Storage life: 20 years
