Bottle Cap Plastic Injection Moulding LKM DME Base / POM PVC

Quick Detail:

1. The part name: bottle cap (plastic injection mold)

2. Plastic material: PP

3. Cavity material: H13 HRC48-52

4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.

5. Gate type: edge-gate, direct gate, fan gate, point gate, sub gate, valve gate, tip gate etc according to our customers requires.

6. Mold base standard: LKM Local standard, DME or HASCO,Customize according to customers\' requirements

7. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.

Description:

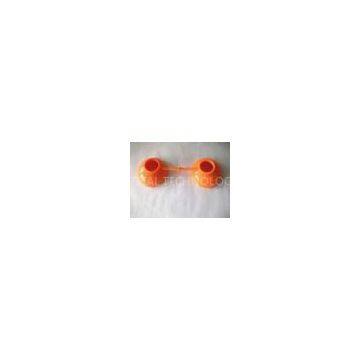

The part name: bottle cap

Mold type: Plastic Injection Mould with cold runner system

Part Material: PP

Locating ring Dimension: Ф100

KO Pattern: 200*200

Sprue Radius: SR 19

Ejection type: ejection while rotating

Mold construction description: cold runner system with edge gate, 2 plates and automatic thread demoulding device.

This product is made of PP plastic material and it is one of the components of the reputable brand bottle. The construction is complicated and there are hydraulic cylinders, hydraulic motors, gear, gear-rack in the mold, also have Internal thread in the product, so it has a very high technical requirement for the mould design. The mould is a cold runner mould with water cooling system and the part can be molded by automatically. Also have an Automatic thread demoulding device in the mold.

This part has very high appearance and size requirements, the defect showed below will not be acceptable, for example, weld line, Dark Sport,Sliver Marks,Gas Trap Effect,Visible Ejector Marks,Deformation,Short shot Filling,Burnt Streaks,Sink Marks,Flash,Over dimension,Under dimension,Stress Crack etc. Moreover, the product finishing surface must meet the requires more than SPI-SPE-A2

This mould is made in Shiny Mould Factory. It is a mould exported to Europe, with complicated structures and high quality requests. Customer needs mold life to be over 1 million shots. We can ensure this mold life and give warrant to our customer that once some mould components are broken during working, if it is caused not by the operation fault from the workers, we can provide new mould components to them free of charge.

Specifications:
