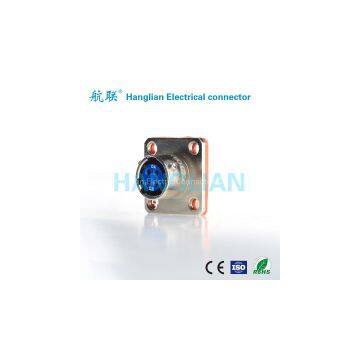

MIL-DTL-26482 I Series amp military pin connector VG95234 RoHS approved Series bayonet 4 pin connector

Product Profile

* In conformity with GJB598A-96(MIL-DTL-26482H)Ⅰseries
* Bayonet-type quick connection;
* Termination is by means of welding;
* Methods for installation of receptacle include flange type, cable type,
bulkhead type, and nut gripped type,etc
* Five-key position is capable of blind-mating;
* Both the plug and the receptacle can be equipped with pin and hole;
* Equivalent to JY, YB, YL and MS series
* Widely used for connection between electronic and electric equipment in aerospace, aviation, navigation and electric power, etc;
* Follow the standard Q/321283LSB04
The Main Technical Characteristics

[Mechanical Properties]
- Shell: aluminum alloy, copper alloy and stainless steel
- Coating: shielding coating: nickel electroplating, chemical nickel-plating, sand blasting and chemical nickel-plating of aluminum shells, chemical nickel-plating of copper, and passivation of stainless steel;
Unshielded coating: anodized in black and in army green
- Insulator: thermosetting plastics
- Contact elements: gold-plating of copper alloy
- Sinusoidal vibration:10 Hz to 2000 Hz, acceleration 147m/s2
- Impact: acceleration 392 m/s2
- Shock: acceleration 980 m/s2
- Durability: 500 times of swapping

[Electrical Properties]
- Contact Resistance and rated current of contact elements
