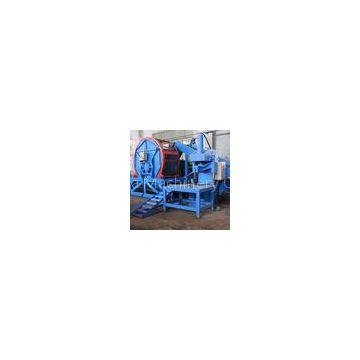

Single Shaft Tyre Rubber Recycling Equipment Three Phase 380V 50Hz

Single Shaft Tyre Rubber Recycling Equipment Three Phase 380V 50Hz

Specification

Tire shredder

1. Tire size :650-1200mm

2. Mesh size:20-120mesh

3. Steel&rubber separated complete

Waste tire shredder (tyre recycling machine)

1. To granulate radial tires into fine rubber crumb of 40~120 mesh with steel and

fiber completely recycled at ambient temperature

2. The input is whole tires,after the processing,steel is completely separated and

fiber can be separated up to 99% or above.The finish product is high and

competitive in the market

3. Tight construction, small space and simple technique flow

4. ?Low energy-consuming and good performance-cost ratio

5. Hight automatization, fewer labours requirement

6. Reasonable construction,easy operation and low rate of breakdown

7. Environmental-protection,no pollution(no waste gas,no waste residue,no polluted water),

meeting the environmental requirement of the government

If the tire?diameter between 1200mm?and?4000mm ?,our company can do

specialized custom-made for your requirements

Advantages:

1.?This machine integrate the waste tire wire cutting and extracting machine, which

reduces the cot and enhances the efficiency greatly!

2.?dopts hydraulic reciprocating extracting method, full circle or half circle of

bead wire can be easily extracted.

3.?Feedig oil by Duplex Impeller Pump?with low operating noise, the two?pumps will

supply oil at the same time when the Extracting Cylinder reach out, and only one

pump supplies oil when?hauling back?the bead wire, so as to?reduce the dynamo's

loading current and save energy.

4.?The speed and pressure of the Extracting Cylinder will not change when the

Pressing Cylinder is working, so as to enhance the machine's efficiency and extend

the Control Valve's lifetime greatly!

5.?Operations are interchangeable between manual and automatic.

FAQ

1. First, we need to cut and draw out the bead wire of the tire by the Compound Tire Cutter

and Extractor,

2. Then we can put the tire into the Tire Crusher by the conveyor, the tire will be crushed

into small pieces with the size of 50x50mm.

3. And those small pieces will be conveyed to the Secondary Crusher to be crushed into

small particles of 6-12mm.

4. Now we need a Magnetic Separator to separate the steel fiber from the rubber particles,

and a Square Magnetic Vibrator to separate the coarse fiber from the rubber particles by

vibrating.

5. The coarse fiber will be collected in a box and the rubber particles will be delivered to a

third Rubber Shredder to be shredded smaller of 1-4mm.

6. And then we need a Static Vibrator to gather the small fiber into clumps by static force,

and to filter the rubber particles by screen.

7. The fiber clumps will be stored in the Fiber Collecting Machine by conveyor, while the

rubber particles will be sent to the Airflow Classifier,

8. The residual fiber will be blowed to the Fiber Collecting Machine by the Airflow Classifier,

and the purified rubber particles will be collected by the Storage Bin,

9. And then be delivered to the Rubber Grinder, so the rubber particles will be grinded

into rubber powder.

10. Then the rubber powder will be separated by the Three-layer Vibrator according to its

size, and be packed automatically by the Packing Machine.

11. The exhaust gas and dust will be collected by the Cyclone Collector, then the dust will

be absorbed by the Dust Separation Machine,

12. while the gas will be filtered by Activated Carbon in the Air Purifier and be emitted to Air.
