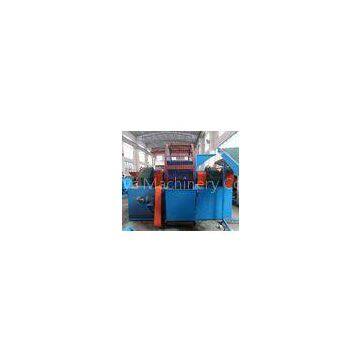

Tire Shredder Rubber Shredding Machine Crush 50MM 50MM Block

Tire Shredder Rubber Shredding Machine Crush 50MM × 50MM Block
?
?
Application:
?
ZPS Tire Shredder is used to shred radial tire and fiber tire into tire chips of 50x50mm size in ambient process, the tire needs to be debeaded before shredding. It mainly consists of motor, speed reducer, machine frame, shredding blades, rotary screener, transmission system, etc.
?
?
Principle:
?
1) The shredding chamber adopts folio compact structure for easy maintenance;
?
2) The shredding blade edges are made of hard alloy after special hardness treatment, wear-proof. The blade edges are made replaceable without dismantling the machine, blades changing and repairing jobs are made easy and not costly any more. Heavy-duty, advanced technology and high output;
?
3) The machine adopts low noise, steady and high torque planet-gear speed reducer, easy and safe operation;

?
?
Advantages of tire recycling machine:
?
1. Crusher roller speed ratio: Ours is 1: 2.5, while the old type roller speed ratio is 1: 1.38.
2. Roller structure: Our two rollers are both grooved, which increase the friction and then improve the
output, while the old type is one with groove, and the other is smooth.
3. Roller material: The roller is made by Welding wear resistant alloy materials, 5Cr6MnMo. We can
offer you 3 years warranty of the roller. While the old types machine use cast iron to make the rollers,
very easy to break or crack in two .
4. Machine feature: Our machine is energy saving 1/3. For example, producing 1T powder, our machine electricity consumption is only 150°, while their electricity consumption is about 250- 280° in making 1T powder.
5. Bearing: Our machine use rolling bearing, there are 8 pieces bearing inside, while the old machine use
the slide bearings ( bush) , which is not as good as ours.
?
