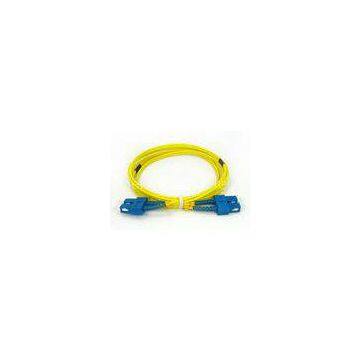

LSZH Jacket Duplex SC Fiber Optic Patch Cord for Optical Access Network

FOB Price

US$ 4 - 5 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

LSZH Jacket Duplex SC Fiber Optic Patch Cord for Optical Access Network

?
?1. What?is?the?Patch?cord?features?????
?
* Single?mode?and?Multimode
* Cable?0.9mm,2.0mm,2.4mm?or?3.0mm?with?simplex?or?duplex?and?4,6,8,12,24,48?cores
* Custom?order?length
* Cable?color?green?,?yellow?,?orange?and?customized
* All?parts?compliant?with?RoHS
* IEC?standard?compatible
* GR-326-CORE?Compliant
?
?
2. What?is?the?Patch?cord?applications?
?
* FTTX?+?LAN?
* Optical?fiber?CATV
* Optical?communication?system
* Telecommunication
?
?
3. Patch?cord?Parameter:
?

Parameter	type	PC	SPC	UPC	APC
Insertion?Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.15dB
MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return?Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
MM	≥35dB	≥35dB	≥35dB	≥35dB
Mating?Durability (500?timer)	Additional?Loss≤0.1dB,?Return?Loss?Variability<5dB
Temperature?Stability (-40°C~85°C)	Additional?Loss≤0.2dB,?Return?Loss?Variability<5dB
Operating?Temperature	-40°C~+85°C

?
?
4. Ordering?information:

CODE	CONNECTOR	CABLE?SIZE	FIBER?TYPE	CABLE?TYPE	BOOT
	SM?Simplex	0.9mm	9/125	Yellow?PVC	Blue
	MM?Simplex	2.0mm	OM3	Orange?PVC	Beige
	APC?Simplex	3.0mm	50/125	White?PVC	Green
	SM?Duplex		62.5/125	Yellow?LSZH	Black
	MM?Duplex			Orange?LSZH	Blue?and?Yellow
	APC?Duplex			White?LSZH	Red?and?Black

?
?
5. What?we?can?offer:
*? Quality?always?comes?first
*? Standard?quality?tests?check?of?all?types?of?products?before?shipment
*? Responsible?for?after-sales?service
*? Aiming?to?get?repeat?orders?from?90%?customer?after?the?trial?orders
*? Making?progress?with?customers?together

Quick?Details:

?LC,?SC,?OM3,?OM4?fiber?patch?cord?Boot?color:?Beige,?Red,?Black?Mode:?SM,?MM,?OM3,?OM4?Cable?core:?Duplex?Ferrule?End-face:?PC,?UPC?Cable?color:?Orange,?Aqua,?Volient?Cable?diameter:?0.9mm,?2.0mm,?3.0mm?Cable?jacket:?PVC,?LSZH,?OFNR,?OFNP

Features:

?Guaranteed?Zero?Defects?Insertion?&?Return?Loss?Tested?Serialized?&?Individual?Test?Records?Meets?Telcordia?Endface?GeometryRequirements?Custom?Configurations?Available?at?No?Extra?Charge

Applications:

?Optical?access?network?Telecommunication?networks?Fiber?optic?communication?networks?CATV,?LAN,?MAN,?WAN,?Test?&Measurement

Specification:?

Item	Single?Mode	Multi?Mode
Insertion?Loss	<=?0.2dB	<=?0.3bB
Return?Loss	PC≥50dB,?UPC≥55dB,?APC≥60dB
Insert-pull?Test	1000?times
Repeatability	<=0.1
Tensile?strength	≥10KG
Operating?Temperature	-40°C?~?+85°C
Ceramic?Ferrule?Specification	125.5um?concentricity? deviations:<=1um	127um?concentricity? deviations:<=3um
Suitable?Fiber	9/125um	50/125um,62.5/125um

?
Our advantage
1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive? price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable serv
