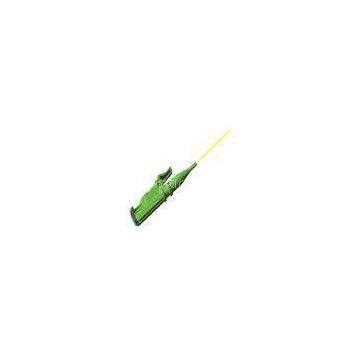

Single Mode E2000 Fiber Optic Pigtail Connector FC SC LC ST , High Return Loss
- T/T L/C D/P D/A
- 7 days
You May Like
-
Single Mode FC Fiber Optic Pigtail G657A1 1 - 3 M Cable APC Endface
-
Multi Mode ST Fiber Optic Pigtail UPC APC Corning Fiber With Yellow Color
-
Duplex SM 9/125 Single Mode Fiber Pigtails with PVC LSZH Jacket Cable
-
CATV LAN MAN Fiber Optic Pigtail Connector LC ST MU MPO , 50/125um 62.5/125um
-
Single SM 9/125um Fiber Optic Pigtail FOR Optical Access Network , ST Pigtail
-
OM3 SC Fiber Optic Multimode Pigtail Aqua Jacket Corning Fiber
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Single Mode E2000 Fiber Optic Pigtail Connector FC SC LC ST , High Return Loss
Specifications:
|
Parameter |
Single Mode |
Multi Mode |
||
|
Basic |
Fiber connector |
FC, SC, LC, ST, MU, MTRJ, MPO |
||
|
Ferrule End-face |
PC |
UPC |
APC |
UPC |
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
≤0.3bB |
|
Return Loss |
≥50dB |
≥55dB |
≥60dB |
≥35dB |
|
Ceramic Ferrule Specification |
125.5um concentricity deviations:<=1um |
127um concentricity deviations:<=3um |
||
|
Suitable Fiber |
9/125um |
50/125um,62.5/125um |
||
|
End-face Geometry |
Radius of Curvature |
7~25mm |
5~12mm |
N/A |
|
Fiber Protrusion |
≤50nm |
≤100nm |
N/A |
|
|
Fiber Under Cut |
≤100nm |
≤100nm |
N/A |
|
|
Apex offset |
≤50um |
|||
|
Mechanical |
Exchangeability |
≤0.2dB |
||
|
Salt Spray |
≤0.1dB |
|||
|
Drop |
≤0.2dB(1.5M, 5 drops) |
|||
|
Vibration |
IL ≤0.2dB(550Hz, 1.5mm) |
|||
|
Repeatability |
≤ 0.1dB(1000 times) |
|||
|
Durability |
> 1000 times |
|||
|
Operating Temperature |
-40°C ~ +85°C |
Features:
1. ? Good interchange
2.?? Good repeatability
3.?? Clean and Scratch-Free End Face
4.?? High Quality 100% Factory Tested
5.?? 3D fiber interferometer is available
?6.? ?Low insertion loss and High Return Loss.
?7.? Fully compliant with standards of IEC and YD-T826/1996.
?8.? Temperature stability: Operating temperature:-20 to +75°c.
?9.? High durability,more than 500 times mating.
10.? individual package with detail information label.
Applications:
Telecommunication networks
Fiber optic communication networks
CATV, LAN, MAN, WAN, Test &Measurement
Optical access network
Our advantage
1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive? price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
