Efficient Rooftop Tile Cold Roll Forming Machine / Roof Tile Production Line
- T/T L/C D/P D/A
- 7 days
You May Like
-
0.7 Mpa Air Pressure EPS Sandwich Wall Panel Roll Forming Machine With Mitsubishi PLC & Converter
-
Building Material Corrugated Roof Sheet Making Machine Galvanized Steel Sheet
-
Automatic Steel C Z Purline Roll Forming Machine Quick Change
-
Small Corrugated Sheet Metal Roof Roll Forming Machine / Roof Panel Making Machine
-
Galvanized Steel Roof Roll Forming Machine Roofing Sheet Production Machines
-
Wave Shape Roof Sheet Roll Forming Machine European Standard
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Efficient Rooftop Tile Cold Roll Forming Machine / Roof Tile Production Line
Basic Information
Introduction of Roof Tile?Production Line?
|
1.?Component |
|
|
Decoiler?,?Main?roll?forming?system,?Pressing?device,?Cutting?device,?Hydraulic?station,?PLC?control |
|
|
2.?The?general?machine?parameter |
|
|
Suitable roll forming?material |
Color?steel?sheet?or?galvanized?steel?sheet |
|
Machine?Sizes |
7800×900×1200mm |
|
Main?motor?power |
4KW?with?Cycloidal?reducer |
|
Hydraulic?station?power |
4KW |
|
Roll forming thickness |
0.2mm~0.8mm |
|
Diameter?of forming?principal?axis |
Φ75mm |
|
Forming material?expand?width |
500mm |
|
Roll forming electric?tension |
380V?3phase?50HZ?or?as?the?customer\'s?requirements |
|
Material?of forming?roller |
High?grade?45#?forged?steel?plated?with?hard?chrome?plating |
|
Roll forming speed |
2-3m/min |
|
Material?of?cutting |
Cr12?mould?steel?with?quenched?treatment |
|
Kind?of?drive |
0.6?inch?chain?link?bearing?model?6210 |
|
Roll rows |
14 rollers |
|
3. Automatic?PLC?? (?The?PLC?can?be?designed?according?to?your?requests) |
|
|
Computer |
Germany\'s?\"SIEMENS\" or Japan\'s \"MITSUBISHI\" |
|
Encoder |
Wuxi\'s?\"REP\" |
|
Switch |
CHNT |
|
Transducer |
Germany\'s?\"SIEMENS\"or Japan\'s?\"MITSUBISHI\" |
Decoiler→Flating→Feeding?&?punching→Forming→cut-to-length?→Colletion?(Finished?goods)
Raw material?
| Material type | GI,GL,PPGI,PPGL |
| Thickness of coil | 0.3-0.8mm ? |
Our Service
We?provide?the?technical?support?for?whole?life.
Meanwhile,?if?any?parts?go?broken?and?not?artificial?damage,?we?will?send?you?new?ones?for?free.?
When?need?the?technician?to?go?abroad,?we?will?arrange?the?technician.
But?the?buyer?should?take?all?the?cost,?including?Visa,?Roundtrip?ticket,
suitable?accommodation?and?pay?the?service?fee.

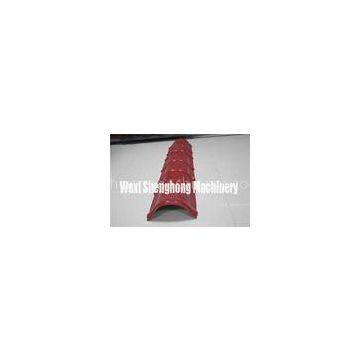

Machinery Photos
