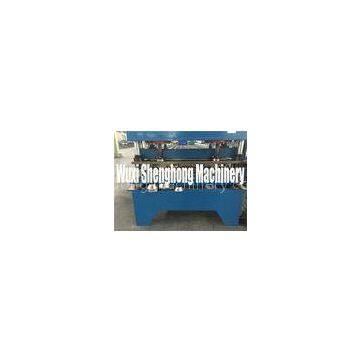

Roof Tiles Series Cold Roll Forming Machine with Fixed Positon Driven Forming Stations

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

Roof ?Tiles Series Cold?Roll Forming Machine with Fixed Positon Driven Forming Stations

Glazed Roof ?Roll Forming Machine?Introduction

Roof tile series modular tile sheet roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, pressing die, shearing device, hydraulic station, PLC control console and so on. Our company has dozens of profile models for this series roll forming machine, such as TM25-183-1100, TM28-207-828, and etc. We can design different kinds of profile and fittings for machine, as per customers\' requirements.

The archaistic tile sheet is rolled and pressed by the roof tile?series modular tile sheet roll forming machine, it has many features, such as good appearance, primitive simplicity and elegance, unique style, noblest grade, and etc. It is widely used in garden style factories, scenic resorts, pavilions, hotels, villas, exhibition halls, country clubs, and so on for outdoor decorations.?
?

Quick Details

Dimension(L*W*H):8000mmX1300mmX1200mm Weight:?7 ton Certification:?CE & BV Warranty:?12 months After-sales Service Provided:?Engineers available to service machinery overseas Color:?As your requirements Cutting type:?hydraulic cutting Hydraulic Power:?3 kw Control:?PLC control system Raw material :?color steel, galvanized steel Thickness:?0.4-0.8mm Shaft diameter?:?76mm ODM :?Available OEM :?We can product as your requirements Production : ?Roof Tile Making Machine Condition:?New Type:?Tile Forming Machine Tile Type:?Steel Use:?Roof Production Capacity:?10-15m/min Place of Origin: Jiangsu, China (Mainland) Brand Name: Shenghong Model Number: Glazed roof tile Power(W):?5.5KW Voltage:?380V 50HZ 3PH ?

Technical Parameters?

1) automatic inner tight decoiler?
? ? A. Coil inner diameter: 450mm-700mm?
? ? B. Max width of coiling: 1200mm?
? ? C. Max weight of loading: 6000kg
? ? D.Thickness:0.3-0.7mm

2) Main forming machine?
? ? A. Number of forming steps: according to the profile drawings
? ? B. Material of shaft : 45# steel adjustable treatment. Outer diameter: 70mm?
? ? C. Material of roller : High grade 45# steel(plated chrome on surface)?
? ? D. Main motor power : 7.5kw?
? ? E. Forming speed : 10-16m/min?
? ? F. Stand : 350# steel welding?
? ? G. The plating chromium of roller surface : 0.05mm

3) hydraulic cutter?
? ? A. Material of blade: Cr12 with quenched treatment60-62o C?
? ? B. Cutting system: Adopt advanced hydraulic drive, automatic cut after forming, no distortion, no waste, high safe factor and then cuts

Working flow

? ? Decoiling--active feeding--roll forming--measuring length-- cutting to length--product to stand
