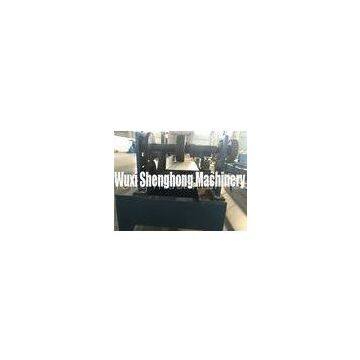

Touch Screen Controls Z Purlin Roll Forming Machine With Button Switch

Touch Screen Controls Z Purlin Roll Forming Machine With Button Switch?

Z Purlin Machine Features:
1) Can produce many sizes of Z shaped purlins
2) The whole line mainly consists of uncoiler and its base, coil sheet flattening
equipment, Z shape forming system, punching equipment, post-cutting?
equipment, hydraulic station, and controlling system
3) Fixing dimensions: 23,000 x 2,400 x 1,400mm
4) Total weight: about 13,000kg
5) Controlling system: PLC
6) Main motor power: 15kW?
7) Hydraulic station power: 15kW
8) Quantity of stands: about 16 groups
9) Working speed: 8,000-10,000mm/min
10) Hydraulic pressure: 18-20Mpa
11) Material of roller die: GCr15 bearing steel with quenched treatment
12) Material of cutting die: Cr12 mould steel with quenched treatment
13) Product range: all the types from 100 to 250
14) C and Z purlin mainly use hot roll steel strip or hot dip galvanized steel strip
at thickness 1.5-3.2mm. It is roll formed by Z shape roll forming machine
15) Working flow: decoiling the sheet-sheet guiding -coil strip leveling-roll?
forming-punching for horizontal hole-punching for vertical hole -measure?
length cutting the panel-panels to the supporter
16) The products of Z shape purlin forming machine have excellent?
anti-bending property and are easy to install
17) They are widely used as the supporter of roof and wall in large-scale and?
mid-scale construction, such as factory, warehouse, garage, exhibition?
center, cinema, theatre, garden

Components of Machine:
?
1. Roller Material:?high grade No.45 forged steel, Coating with hard chrome.
?
2. Active Shaft Material: high grade No.45 carbon wrought steel,?improved the integrated mechanic feature of the shaft.
?
3. Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.
?
4. Other Elements: from famous suppliers in China.
?
5. Cutter Blade: Cr12 mould steel with quenched treatment.

Material of Main Equipment??

Main Equipment:?

1. 5T Hydraulic uncoiler
?
-- Single head to put the coil
?
2. sheet guiding
?
make sure the material is flat
?
3.?Roll forming main machine
?
-- working speed: 10m—15m/min (not include cutting & punching time)
?
-- Roll forming: about 10 stations
?
-- Transmission: by chain
?
-- Machine adopt wall structure, thickness: 20mm
?
4. Cutting:
?
-- Machine adopt hydraulic after cutting
?
-- Cutting after forming: Cut the sheet after roll forming to required length
?
-- Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
?
-- Length measuring: Automatic length measuring
?
-- Tolerance of length: 3m 1.5mm
?
5. Manual out table:
?
-- One out table with two support roller
?
6. PLC Control panel
?
-- Automatic length measurement:
?
-- Automatic quantity measurement
?
-- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
?
-- Length inaccuracy can be amended easily.
?
-- Control panel: Button-type switch and touch screen:

7. Hydraulic station

?Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
