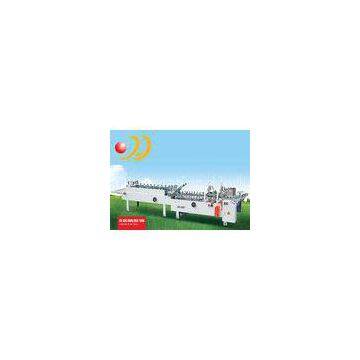

High Speed Post Folder Gluer , Automatic Box Carton Making Machine
US$ 4 - 5
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Correction Function Prefolder Paper Box Making Machine Crash Lock Bootom
-
11KW Paper Die Cutting Machine Rotary Plastic Adhesive Label Roll
-
Fully Automatic Paper Die Cutting Machine With Stripping Station
-
Easy Operation Paper Cut Machine , Die Cut Paper With Waste Stripping
-
Waste Stripping Paper Die Cutting Machine For Corrugated Board
-
Paper Die Cutters With CE Certification , Die Cutting Machine For Paper
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
High Speed? Post Folder Gluer , Automatic Box Carton Making Machine
Description:
This model is our regular model. It is known as?stable,?flexible?and?user-friendly?and has good reputation among our customers. It can glue from small boxes to large boxes. For small boxes, it can make 40000 to 5000pcs per hour. It is ideal equipment for printing industry.
Technical parameters
|
1.?Line speed |
?0~220m/min continuous adjustment. |
|
2.?Usage paper |
?210~600gsm,?Paperboard |
|
3.?The box forming |
?Either side’s folds, the both sides pre-fold and either side glue. |
|
4.?Paper feeding |
?Automatic feeding |
|
5.?Binder |
?Dissolve the type. |
|
6.?Electric |
?Single-phase AC220V 2.2KW |
|
7.?Weight |
?1800kg |
|
8.?Dimension |
?5800×900×1300(mm) |
|
9.?The counting range |
?0~999999(full-automatic) |
Technical Data:
| Model | (A Max) | (A Min) | (B Max) | (B Min) | (C Max) | (C Min) | Power | Speed | Weight | Dimension |
| ZH-800 | 560mm | 105mm | 550mm | 50mm | 270mm | 50mm | 220v 2.2kw | 0~220 | 1.5t | 5800*900*1300mm |
| ZH-800C | 450mm | 65mm | 550mm | 50mm | 170mm | 30mm | 220v 2.2kw | 0~220 | 1.5t | 5800*900*1300mm |
| ZH-880 | 660mm | 105mm | 550mm | 80mm | 330mm | 50mm | 220v 2.2kw | 0~220 | 2.0t | 5800*900*1300mm |
| ZH-1000 | 760mm | 130mm | 600mm | 80mm | 380mm | 60mm | 220v 2.2kw | 0~220 | 2.0t | 5800*900*1300mm |
