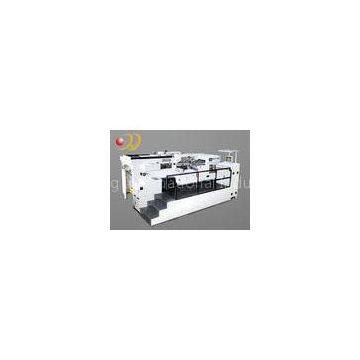

Platen Stamping / Paper Die Cutting Machine For Papaer Board

Platen Stamping / Paper Die Cutting Machine For Papaer Board

Main Technical Parameter:

1, Cutting?method?:?Platen?(?Upper?static,?Lower?move)

2, Max?paper?size : 1670X1210?mm

3, Min?paper?size : 520X460?mm

4, Max?cutting?size ?: 1650X1200?mm

5, Max?cutting?pressure ?: 250?T

6, Application : corrugated?paper?≤8?mm

7, Max?speed : 4000?S/H

8, Feeding?stack?max?height : 1600?mm

9, Collection?stack?max?height : 1300?mm

10, Main?motor?power : 15?KW

11, Total?power :?22?KW

12, Weight : 24?T

13, Dimension(+?platform,?+?pre-stacking) : 8630(+2020)*3000(2300)*2580?mm

Features:

1. The machine made by professional precessing, with scientific structure.Easy to operation, prefesssional safety performance,large cutting pressure to make high benefit.
2. Suitable for papaer board, corrugated board, PP, PVC, concave-convex printing etc. Wide field of application, long service life.
3. New design and Compact structure to make operation easy, safe, ?highly active and wide application.
4. The machine can use for Foil stamping, Concave convex heating and die cutting (one machine with multi function, Ideal equipment)
5. The machine adopt Programmable controller and Interface to monitor and control machine\'s real-time status and failure hint.
6. Foil stamping control system to make foil step with optimization programming automatically, 12 areas constant temperature control.
