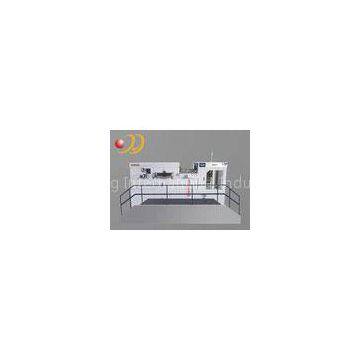

Waste Stripping Hydraulic Paper Cutting Machine Concave - Convex Printing

Waste Stripping Hydraulic Paper Cutting Machine Concave - Convex Printing

Features:

1. The machine made by professional precessing, wiht scientiflc structure.Easy to operation,prefesssional safety performance,Iarge cutting pressure to make high benefit.
2. Suitable for papaer board,corrugated board,PP,PVC,concave-convex printing etc.Wide field of application,long service life.

Further Feture:

Automatic feeding device

The device use European technology strong suction?head. 4 sucktion 5 deliver fuction, adjustable suction?

duct, air absorption device on both sides to ensure?the feeding smooth, stable. according to paper style?

and different angle of bend to make adjustment for get?wild range of pplication. 2 group of laser control?

device to avoid the collision, with unstop feeding?systerm to improve work efficiency.

Die Cutting

The casting made by high strength resin sand process,?air clutch to drive the high precision worm and worm?wheel to ensure less deformation when get die cutting?stress, smooth running in high speed. High speed?intermittent device drived Germany chain, aluminum?alloy with special process, double location to ensure?the precision. The frame, air lock device, turnover?device to change the mould easily. The stainless steel?bottom plate can use 5+2 type groups(optional) to get?more easy for second mould change, concave-convex?cutting, replace the mould, also save time and cost.?Automatic pressure adjustment device(optional) ?to?adjust the pressure more easy and?controllable .

Feeding

adobt synchronous transport, smooth running, feeding?shelves with air spring can make operation more?

easily. There are Push, pull, dual-purpose type side?gauge on the both of sides, with adjustable front?

gauge location?device, ?imported laser location device to make?location more precision. Also have empty sheet, skew?sheet, double sheet control device to ensure the?feeding precision, smooth, reduce the waste of paper.?single point clutch function can make feeding and?cutting separation anytime or synchronous combining,?it makes operation more easily.

Stripping

The stripping device made with above frame, middle?frame, below frame.These 3 linkage frame can transport?power easily, camshaft curvilinear?motion, it can improve the stability of tripping. with?middle line frame can fast change the mould. The?preset shelves (optional) can make Pre typesetting out?of machine to reduce the typesetting time. Stripping?air stopped device to?extend the service life.

Delivery

Adobt mechanical drive brush press paper device, with?bidirectional blowing device to devlier paper?

smoothly. Set the Speed reduction or stop delviery?after paper\'s full, also can choose unstop deliery?

with vice delivery device, take sample with air?control, ?make lable for any number of piece paper,?

setting auotmatic stop after reach setting pieces?function.

Others

The machines adopts imprted electrical parts, imported?bearing.lnternal and external lubrication, internal?

parts adopts oil circulation system and external parts?use PLC automatic control oil pump system to keep?

machine running smooth, high speed , Increased the?machine life. The man-machine interface ?is easy for?make operation, also have fault display function, can?notice the fault with sound ?and ?light alarm to get?toubleshooting on time. The flash memory disk ( USB )?can upgrade system very easily.
