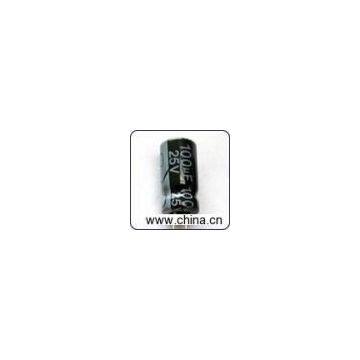

Sell Aluminum Electrolytic Capacitor

Model No.:
Product Origin:China
Brand Name:
Price Terms:FOB Shenzhen
Payment Terms:T/T, L/C
Certification:
Description:Specifications: 1) Rated voltage range: 16~400V DC 2) Operating temperature range: -40 ~ +105°C 3) Capacitance tolerance: ±10% (K), ±20% (M) (20°C, 100/120Hz) 4) Leakage current: whichever is greater after 2min at 20°C 5) Dissipation factor (20°C, 100/120Hz): add 0.02 per 2,000μF for more than 4,700μF 6) Low temperature characteristics: impedance ratio at 100Hz or 120Hz shall not exceed the values given below 7) Shelf life: after storage for 1,000 hours at 105°C, the capacitors shall meet the following requirements: capacitance change within ±20% of the initial value; dissipation factor not more than 200% of the specified value; leakage current not more than 200% of the specified value 8) Loading life after application of rated voltage with rated ripple current for 3,000 hours at 105°C, the capacitors shall meet the following hours at 105°C, the capacitors shall meet the following requirements: capacitance change within ±20% of the initial value; dissipation factor not more than 200% of the specified value; leakage current not more than specified value 9) Standard: GB/T5993-2003
