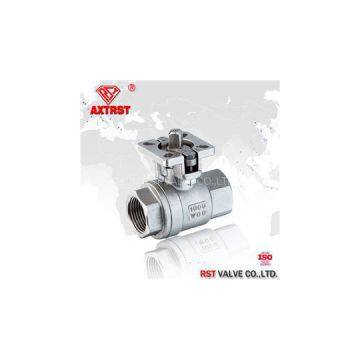

Two Piece Stainless Steel Floating Ball Valve With ISO5211 Mounting Pad

Place of Origin	China

Two Piece Stainless Steel Floating Ball Valve with ISO5211 Mounting Pad ●RST Valve company is a industry valves manufacturer,Website: , including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.●2PC Stainless Steel Thread Ball Valve includes 2PC Thread 1000WOG Ball Valve, Two Piece Floating 2000PSI Ball Valve, 2PC DIN M3 PN63 Stainless Steel Ball Valve, Full Port 2 Piece Male Thread Ball Valve, Stainless Steel 2PC Economic type Ball Valve, 2 Piece Korean Reduce Port Ball Valve, Two Piece Floating Ball Valve with ISO5211 High mounting Pad, 2PC Pneumatic Ball Valve, Two Piece CF8M Motorized Ball Valve, 2PC Full Port Floating Ball Valve with Electric Actuator.●The 2PC ball valve with ISO5211 Mounting Pad incorporates several innovative design features for improved process performance. ?The uniform bore diameter improves flow rates and minimizes pressure drop through the valve. ?The new dual pattern ISO 5211 mounting pad facilitates direct mounting of pneumatic and electrical actuators. ?In combination with our high-cycle stem packing system, 2PC stainless steel ball valve with ISO5211 high mounting pad provides an ideal choice for all your automation requirements.Features and Benefits: ●Dual Pattern ISO 5211 Direct Mount Pad ●No bracket or drive coupling needed for automation●Eliminates exposed moving parts for safer work environment●Direct drive eliminates play and improves actuator positioning●Dual pattern pad fits a wide range of actuator sizes●High-Cycle, Live-Loaded Stem Packing ●Ensures tight seal●Extends service life●O-Ring Stem Bearing ●Maintains stem alignment●Reduces packing side loading and wear●Enhances stem seal●Blow-Out-Proof Stem ●Stem is bottom loaded to prevent removal when valve is in service●Full Port Design ●Improves flow resulting in increased process efficiencies●2-Piece Construction ●Our most economical direct mount design●Locking Device ●Enables plant personnel to secure valve in open or closed position when manually operated●Investment Cast ●Improves dimensional control and reduces porosity●Options ●Stem extensionsOperating / Test Conditions: ●Maximum Working Pressure (RTFE): ●1000 PSI WOG (1/4"-2")●800 PSI WOG (2 1/2"-3")●All valves are shell and seat tested to ANSI/ASME B16.34 and API 598 ●All materials comply with applicable ASTM material specifications ●End connections: ?NPT to B1.20.1 and B16.34Competitive Advantage: ●OEM/ODM is applicable●Offer free sample for testing●100% test before delivery●18 months warrantyProduct Name 2PC Stainless Steel Floating Ball Valve with ISO5211 Mounting Pad1. MaterialSS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.2. Size1/4’’?3/8’’?1/2’?1 1/4’’?1 1/2’’?2’’?2 1/2’’?3’’?4’’3. Thread standardISO9001 & CE, TS4. OperatedHandle operated, Pneumatic actuator, Electric Actuator5. Working PressurePN63( 6.3 Mpa)6. Connection EndsNPT/BSP/BSPT/DIN259/DIN29997. Working Temp.-20~300℃, or according to customer requirements for different industry.8. Suitable MediumWater, Natural Gas, Oil and some corrosive liquid9. LockingOption10. Inspection & TestingAccording to API598Shipment 　Delivery Time15~20 DaysPackageStandard Exporting Plywood CaseShipping PortNingbo/Shanghai, ChinaShipping TermsExw, FOB, CFR, CIF, etc.Payment TermsT/T, Western Union, PayPal, etc.　30% prepayment, 70% balance paid before shipping or against copy of BLCountry of OriginWenzhou city, ChinaProduction Capacity6000 ton/yearMOQ10 PCS/sizeSpecification ? ? ? ? ? ?Item NoPart NameMaterial1CapCF8MCF8WCB2BodyCF8MCF8WCB3Seal GasketPTFE/RPTFE4SeatPTFE/RPTFE5Ball3163043046Thrust WasherPTFE7O-RingVITON8Stem PackingPTFE9GlandSS30410Spring WasherSS30411Gland NutSS30412Stop WasherSS30413GlandSS30414HandleSS15Stem NutSS30416Handle CoverPlastic17Locking DeviceSS18Stem31630430419Locking BoltSS304 ? ? ? ? ? ?SizeDNLHH1WoPTorque N.MISO52111/4"1050573011094F03/F043/8"1250573011094F03/F041/2"1560653711095F03/F043/4"2070674011097F03/F041"25908049130119F04/F051-1/4"329583531601116F04/F051-1/2"3810699621851421F05/F072"48120107701851425F05/F072-1/2"65160165932501748F07/F103"781801801062501782F07/F104"9822020012631019112F07/F10Torque Chart ?. ? ? ? ? ?Above torque values based on clean water service at ambient temperature with 15% CF filled PTFE seats. Please adjust values for different service conditions and seat materials and apply appropriate safety?factor when sizing actuators. ?Note: All the data?should be confirmed with the approved drawings of manufacturer. RST VALVE is looking forward to strengthening cooperation with various sectors?of society to create brilliancy?together. ?MADE IN CHINA, FOCUS ON WORLD!
