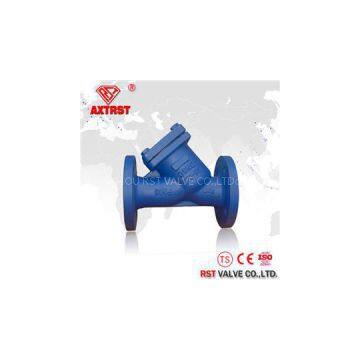

Cast Steel DIN Flange Ends Standard Y Type Strainer

Place of Origin	China

Cast Steel DIN Flange ends Standard Y Type Strainer ●RST Valve company is a industry valves manufacturer,Website: , including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.●Y Type Strainer mainly has Thread ends 800WOG Y Type Strainer, API Flange Stainless Steel Y type Strainer, DIN Cast Steel Flange ends Y Type Strainer, Forged Steel Thread/Welding ends Y Type Strainer, Forged Steel Flange Y Type Strainer.Specifications: Product Name DIN Flange ends Cast Steel Y type Strainer 1/2~48 inches1. MaterialSS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.2. Size1/2’'~48'' ( DN15~DN1200)3. Thread standardISO9001 & CE, TS4. TypeY type5. Working PressureAISI 150LB~1500LB/ PN16~PN2506. Connection EndsRF, FF, RTJ7. Screen20 mesh to 160 mesh8. Working Temp.-29~425℃, or according to customer requirements for different industry.9. Suitable MediumWater, Natural Gas, Oil and some corrosive liquid10. Inspection & TestingAccording to API598Shipment 　Delivery Time15~20 DaysPackageStandard Exporting Plywood CaseShipping PortNingbo/Shanghai, ChinaShipping TermsExw, FOB, CFR, CIF, etc.Payment TermsT/T, Western Union, PayPal, etc.　30% prepayment, 70% balance paid before shipping or against copy of BLCountry of OriginWenzhou city, ChinaProduction Capacity6000 ton/yearMOQ10 PCS/sizeInstructions: ●Y-Strainers take their name from their configuration. Y-Strainers are devices for mechanically removing unwanted solids from liquids, gas or steam lines by means of a perforated or wire mesh straining element. Y-strainers are very cost effective straining solutions in many applications, where the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings. The strainer screen is manually cleaned by shutting down the line and removing the strainer cap.●While often used in many different types of liquid applications, a Y-strainer is considered standard for steam applications and is almost universally used for these applications. Its compact, cylindrical shape is very strong and can handle high pressures. It is, literally a pressure vessel. Y-strainers which handle pressure upto 6000 psi are not uncommon.●Besides steam, Y-strainers are often used in air or natural gas applications. Here again, high pressures are not uncommon. However unlike steam, high air pressure does not automatically mean high temperature and so, ordinary carbon steel bodies of sufficient wall thickness will generally suffice.●Unlike other types of strainers, a Y-strainer has the advantage of being able to be installed in either a horizontal or vertical position. Obviously, in both cases, the screening element must be on the 'downside’ of the strainer body so that the trapped material can be properly collected in it.●Some manufactures reduce the size of Y-strainer body to save material and cut cost. Before installing a Y-strainer, be sure it is large enough to properly handle the flow. A low priced strainer maybe an indication of an undersized unit.●Stainless steel Y-strainers are used where high corrosion resistance or where freedom from contamination is required. They are popular in the chemical, food and pharma industries.●Y-strainers are available with a wide variety of end connections including threaded, flanged and welded.Features & Benefits: ●Easy cleaning without interrupting the process.●Various perforations, mesh or perforation mesh combinations are available to meet your?process requirements.●Can be installed either in a horizontal or vertical position.Technical Data: Medium: liquids, steams, gases or mixtures ?Engineering Specification ●Flange nominal width: ?DN 15 to 1200 (1/2" to 48")●Operating Pressure: ?PN 16 to PN 250* (ANSI 150 to ANSI 1500 lbs)*●Filter fineness (Mesh sizes): 400 μm* (Standard) or s per to customer’s requirement●Connection Flanges acc. to ANSI / DINMaterial ●Housing: 1.0169 (A216 WCB) 1.4408 (A315 CF8M)●Filter element: 1.4401 (316)●Surface treatment: one coat of red oxide* (carbon steel)●Fitting position: Horizontal or vertical●Direction of flow: lateral or from top to downCompetitive Advantage: ●OEM/ODM is applicable●Offer free sample for testing●100% test before delivery●18 months warrantyMaterial List:No. Part Name Material 1BodyASTM A351 CF8M2Strainer ScreenSS3163BoltSS3044GasketPTFE5BonnetASTM A351 CF8M6NutSS3047BoltSS304Applications: Y Strainers are used in pipelines to protect pumps, motors, control valves, steam traps, regulators and other process equipment. They are used in wide variety of liquid straining applications in many industries such as:· Chemical processing· Petroleum, oil & Petrochemical industries· Power generation· Marine· Food & Pharma industries· Water applications· Steam applications· Air or natural gas applicationsRST VALVE is looking forward to strengthening cooperation with various sectors?of society to create brilliancy?together.MADE IN CHINA, FOCUS ON WORLD!
