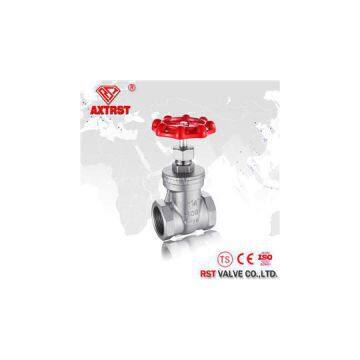

Stainless Steel Thread Ends CF8M Gate Valve Rising Stem 200WOG

Place of Origin	China

Stainless Steel Thread ends CF8M Gate Valve Rising stem 200WOG ●RST Valve company is a industry valves manufacturer,Website: , including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.●Gate Valve mainly has Thread 200WOG Gate Valve, API600 Flange ends Gate Valve, DIN F4/F7 Stainless Steel Flange ends Gate Valve, Carbon Steel Bellow Seal Gate Valve, Forged Steel A105 Gate Valve, 800LB Thread ends Gate Valve, F11/F22/F51 1500LB Flange ends Gate Valve, Butt Welded Gate Valve, Pressure Sealed Socket Welded Gate Valve, Flange ends 2500LB High Pressure Gate Valve, 150LB~900LB WCB Flange Gate Valve, Rising Stem Gate Valve, Non-Rising Stem Gate Valve, Gear Operated Gate Valve, Gate Valve with Pneumatic/Electric Actuator.●Gate valves are characterized as having either a rising or a non-rising stem. Rising stems provide a visual indication of valve position because the stem is attached to the gate such that the gate and stem rise and lower together as the valve is operated. Non-rising stem valves may have a pointer threaded onto the upper end of the stem to indicate valve position, since the gate travels up or down the stem on the threads without raising or lowering the stem. Non-rising stems are used underground or where vertical space is limited.Specifications: Product Name Stainless Steel Screwed ends 200PSI CF8M Gate Valve1. MaterialSS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.2. Size1/2’'~2'' ( DN15~DN50)3. Thread standardISO9001 & CE, TS4. PortFull Port5. Working Pressure200WOG/PSI6. Connection EndsNPT/BSP/BSPT/DIN259/DIN29997. Working Temp.-29~425℃, or according to customer requirements for different industry.8. Suitable MediumWater, Natural Gas, Oil and some corrosive liquid9. OperatedHandwheel10. Inspection & TestingAccording to API598Shipment 　Delivery Time15~20 DaysPackageStandard Exporting Plywood CaseShipping PortNingbo/Shanghai, ChinaShipping TermsExw, FOB, CFR, CIF, etc.Payment TermsT/T, Western Union, PayPal, etc.　30% prepayment, 70% balance paid before shipping or against copy of BLCountry of OriginWenzhou city, ChinaProduction Capacity6000 ton/yearMOQ10 PCS/sizeFeatures: 1.200 WOG @ 350 °F2.316 stainless steel3.Screwed bonnet4.Solid wedge disc5.Non-rising stem6.Hydrostatic shell test at 300 psi7.Hydrostatic seat test at 220 psi8.Threaded or socket weld ends Competitive Advantages: 1.Our products is guaranteed within 18 months after delivery.2.We offer free sample if interest before orders.3.Technology renovation, process improvement, structure optimization and quality improvement.4.Excellent after-sales service system, providing timely and optimal service, which help you to win the market.5.Convenient shipping sea port, and standard exporting carton boxes & plywood cases.6.100% inspection & testing before delivery.7.Third party inspection on customer requirement. ?Material List: No. Part Name Qty Material 1Body1316 Stainless Steel2Core1316 Stainless Steel3Bonnet1316 Stainless Steel4Packing1PTFE5Gland Nut1304 Stainless Steel6Hand wheel1Aluminum7Name Plate1Aluminum8Nut1304 Stainless Steel9Stem1316 Stainless Steel10Metal Podding1304 Stainless Steel11Washer1316 Stainless Steel12Seal1PTFEDimension(inch): Size A B C D 1/2''0.592.164.762.763/4''0.792.365.042.761''0.982.685.433.151-1/4''1.262.996.13.151-1/2''1.563.157.363.942''1.973.668.53.942-1/2''2.564.610.354.533''3.155.1211.614.53Note: All the data?should be confirmed with the approved drawings of manufacturer. RST VALVE is looking forward to strengthening cooperation with various sectors?of society to create brilliancy?together.MADE IN CHINA, FOCUS ON WORLD!
