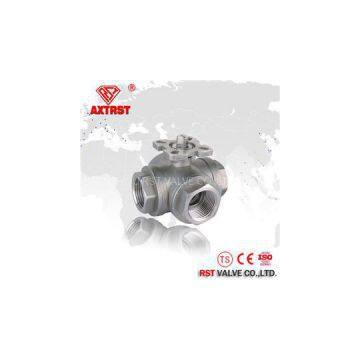

Stainless Steel T Port/L Reduce Port Thread Floating Three Way Ball Valve With ISO5211 Mounting Pad

Place of Origin	China

Stainless Steel T Port/L Reduce Port Thread Floating Three Way Ball Valve with ISO5211 Mounting Pad ●RST Valve company is a industry valves manufacturer,Website: , including Thread & Flange Ball Valves, Three Way Ball Valve, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.●Thread 3 Way Ball Valve, Flange 3 Way Ball Valve, T Port Thread 3 Way Ball Valve, L Port Thread 3 Way Ball Valve, Flange 3 Way T Port Ball Valve, Flange 3 Way L Port Ball Valve, Three Way Stainless Steel T/L Port Ball Valve with ISO5211 Direct Mounting Pad.●Three- way and four-way have an L- or T-shaped hole through the middle. The different combinations of flow are shown in the figure. It is easy to see that a T valve can connect any pair of ports, or all three, together, but the 45 degree position which might disconnect all three leaves no margin for error. The L valve can connect the center port to either side port, or disconnect all three, but it cannot connect the side ports together.●Multi-port ball valves with 4 ways, or more, are also commercially available, the inlet way often being orthogonal to the plane of the outlets. For special applications, such as driving air-powered motors from forward to reverse, the operation is performed by rotating a single lever four-way valve. The 4-way ball valve has two L-shaped ports in the ball that do not interconnect, sometimes referred to as an "×" port.Standard Features: ●Available in "T" or "L" port configurations●Reduce Port●ISO5211 direct mounting pad●Live-loaded stem packing●Blow-out-proof stem●Investment castingBenefits:1.Reduces number of valves required in piping system2.Standard mounting pad for ease of automation3.Live-loaded stem packing improves cycle life4.Balanced 4-seat construction provides for positive shut-offProduct Name 1000WOG Floating Thread T/L Port Three Way Ball Valve with ISO5211 Mounting Pad1. MaterialSS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.2. Size1/4’’~4’’?(DN6~DN100)3. OperatedHandle, Lockable handle, Pneumatic Actuator, Electric Actuator.4. PortFull Port5. Working Pressure1000WOG( PN64/6.4 Mpa)8. Working Temp.-20~300℃, or according to customer requirements for different industry.9. Suitable MediumWater, Natural Gas, Oil and some corrosive liquid10. Inspection & TestingAPI598Shipment 　Delivery Time15~20 DaysPackageStandard Exporting Plywood CaseShipping PortNingbo/Shanghai, ChinaShipping TermsExw, FOB, CFR, CIF, etc.Payment TermsT/T, Western Union, PayPal, etc.　30% prepayment, 70% balance paid before shipping or against copy of BLCountry of OriginWenzhou city, ChinaProduction Capacity6000 ton/yearMOQ10 PCS/sizeCompetitive Advantage: 1.18 Months Guarantee for quality.2.OEM manufacturer, print client’s LOGO on the valve body.3.Timely delivery. 15 days for standard products. 30 days for non-standard products to make new mould.4.100% leakage test after assembly5.As a factory, every production process can be controlled during manufacture.6.Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.Item No Part Name Material 1CapCF8MCF8WCB2Body GasketPTFE3Seal SeatPTFE/RPTFE4Ball316304SS/3045BodyCF8MCF8WCB6Thrust WasherPTFE7Stem PackingPTFE8Gland RingSS304/SS9Stem316304SS/30410HandleSS11Spring WasherSS304/SS12Stem NutSS304/SS13Handle CoverPlastic14Locking DeviceSSNote: All the data?should be confirmed with the approved drawings of manufacturer. RST VALVE is looking forward to strengthening cooperation with various sectors?of society to create brilliancy?together.MADE IN CHINA, FOCUS ON WORLD!
