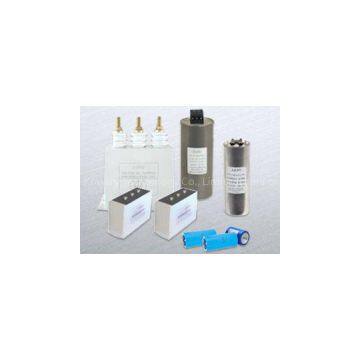

AC Filter capacitors series

Features

Metallized film, UL94V-0 resin end filled, dry construction, internal series connection or non-inductive construction.

Wide capacitance range, high voltage, high ripple, long useful life.

Coating: Aluminum case, fire-retardant plastic case (UL 94 V-0).

Terminals: Tinned copper wire, copper bolt nuts, or 3 in 1 bolt nut.

Applications

Widely used in UPS, solar and wind power inverters, switching power supply, variable frequency AC power supply LC filter, inverter welding machine for inverter, rectifier output LC filter circuit.

Electrical Characteristics

REFERENCE STANDARD: IEC 61071

OPERATING TEMPERATURE: -40℃ - +85℃

CAPACITANCE RANGE: 3×20uF - 3×500uF (three phases)

　　　　　　　                 0.1uF - 350uF (single phase)

CAPACITANCE TOLERANCE: ±5%(J), ±10%(K)

VOLTAGE RANGE: 250V - 1000VAC (DC Available)

DISSIPATION FACTOR: 0.08% max. at 1KHz, 25℃

DIELECTRIC STRENGTH: Between Terminals: 150% of rated voltage for 10 sec. at 25℃

　　　　　　　　                 Between Terminals to case: 3,000V 50Hz for 60 sec.

INSULATION RESISTANCE: 5,000MOhm*uF/C min. (25℃, 1min.)

STRAY INDUCTANCE: <100nH (three phases)

LIFE EXPECTANCY: 30,000 Hours - 100,000 Hours at rated voltage and 70℃

Notes

Customization for special specification and requirement is available.

Request Datasheet: Please contact with info@kowarytech.com directly.
